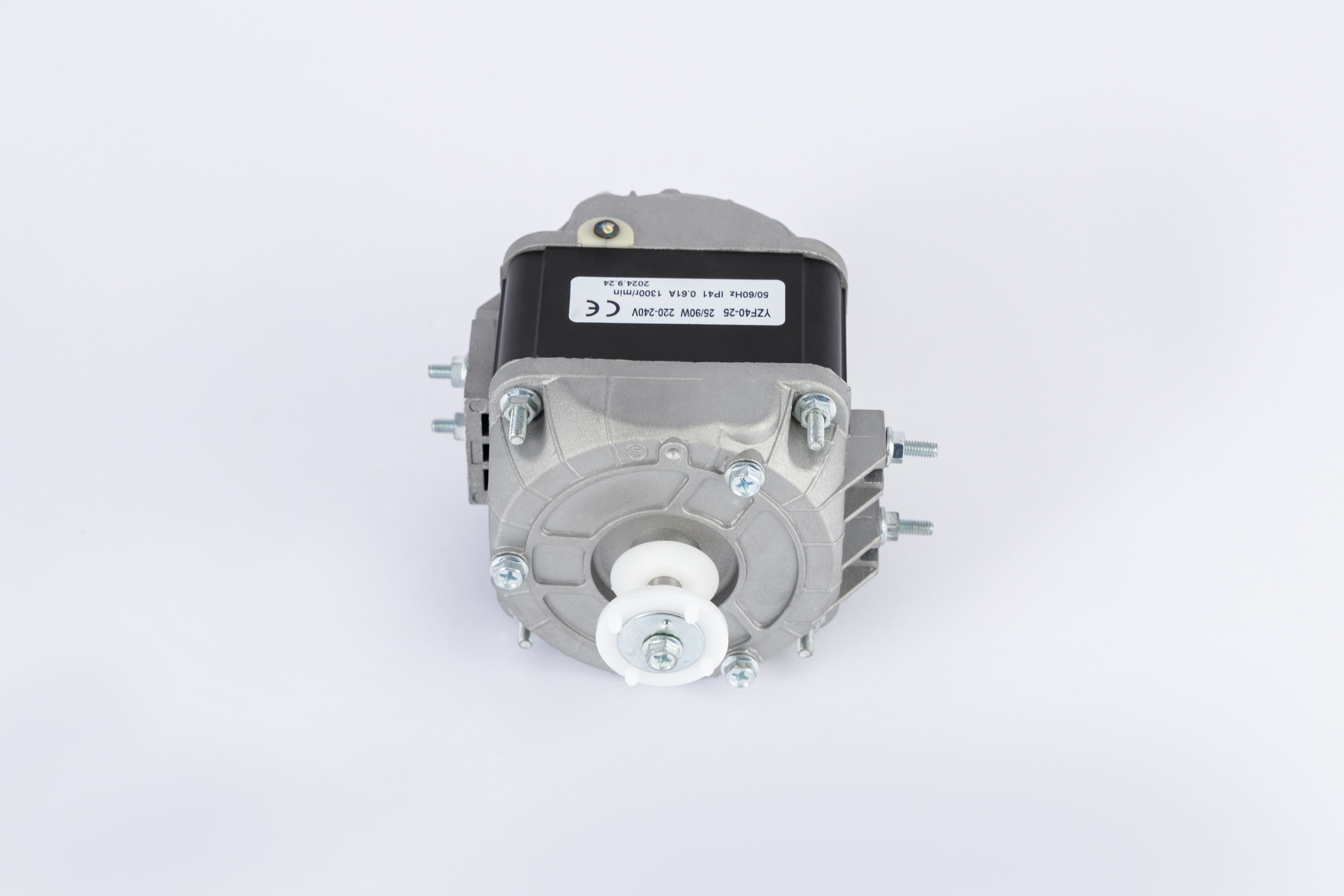

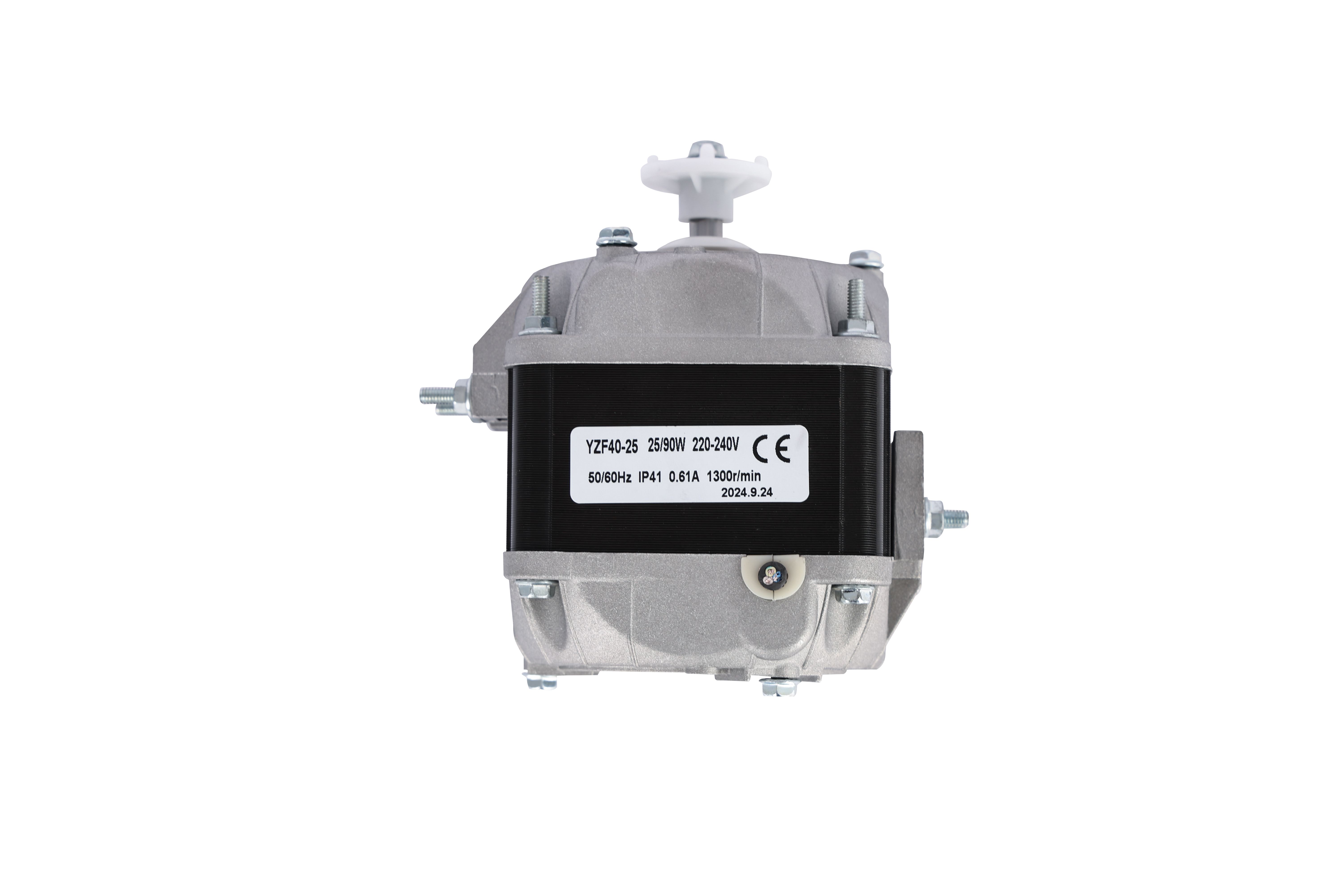

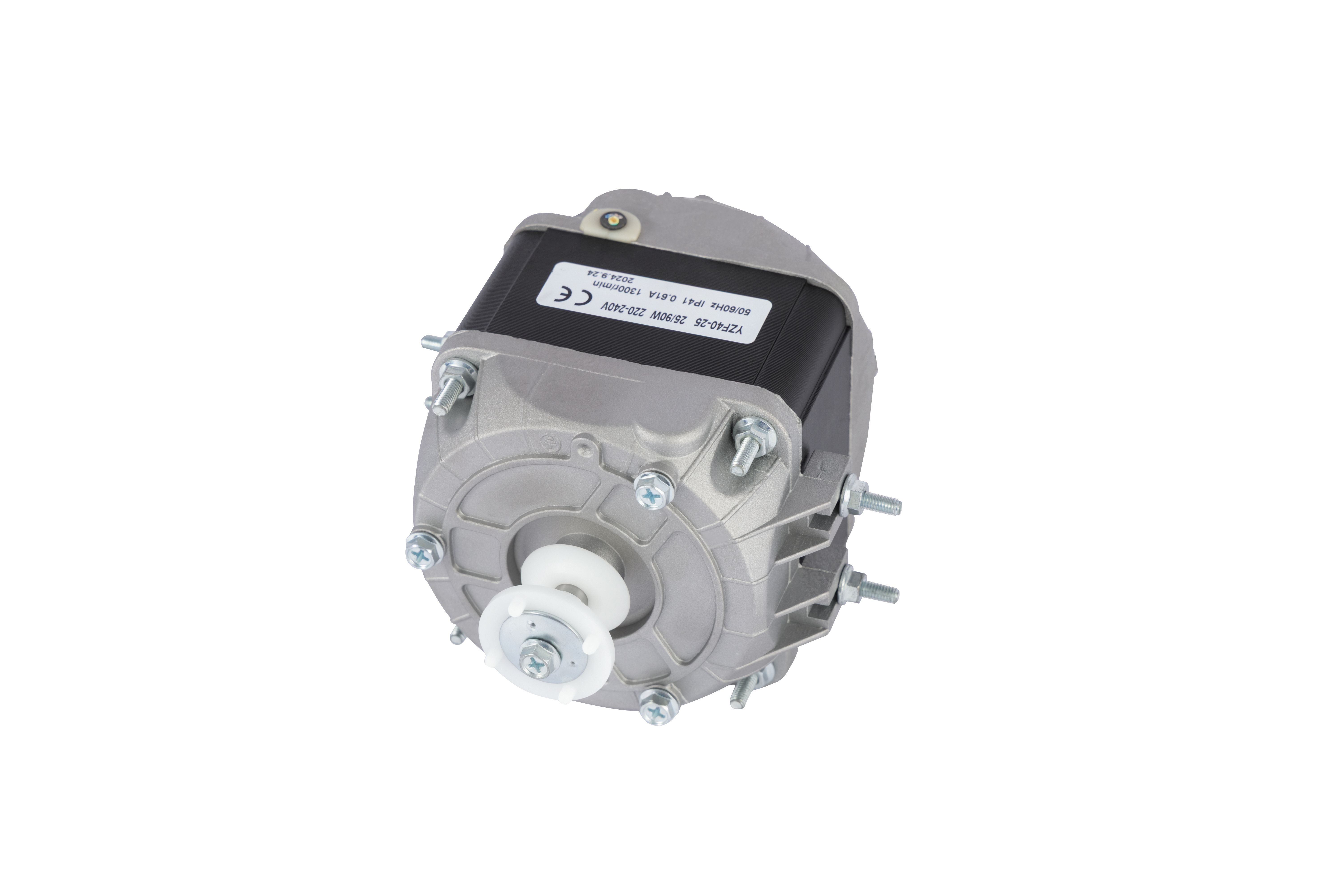

YZF series motor is single-phase asynchronous four-pole motor is an asynchronous motor driven by a single-phase AC power supply. It mainly consists of a stator, rotor, and end covers, and has no brushes or commutator, resulting in low maintenance costs. The magnetic field generated by its stator windings has four poles (two pairs of poles), and the synchronous speed is approximately 1300/1500rpm per minute. Widely used in radiators,condenser,evaporators and other refrigeration equipment and warm air blower equipment.
· Item: YZF-45
· Motor output power: 34W
· Type of protection: IP41 to IP44
· Winding Material: Copper or Aluminium
· Voltage: 220V or 110V or 220V/110V
· Frequency: 50Hz or 60Hz or 50/60Hz
· Bearing: Sleeve Bearing or Ball Bearing

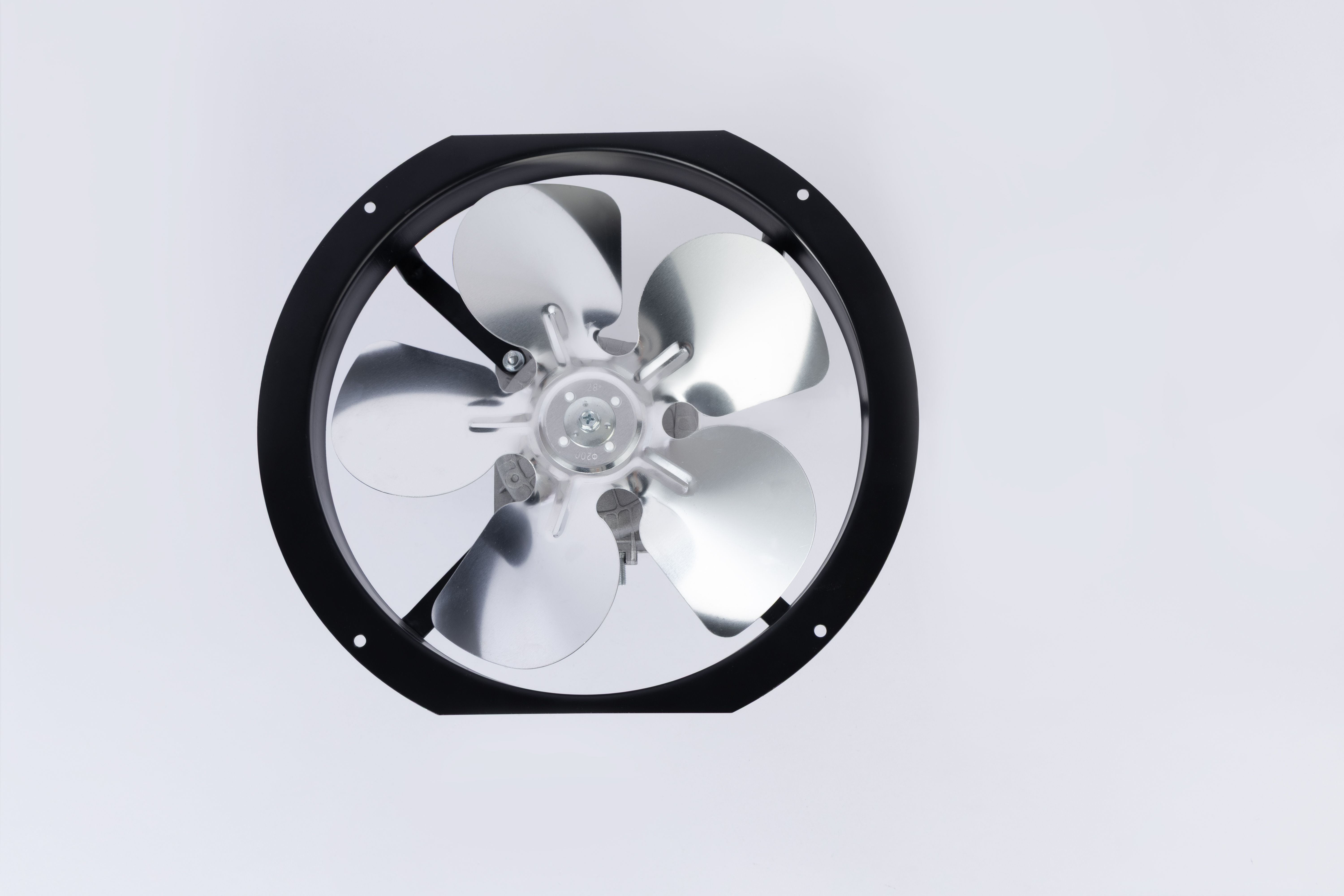

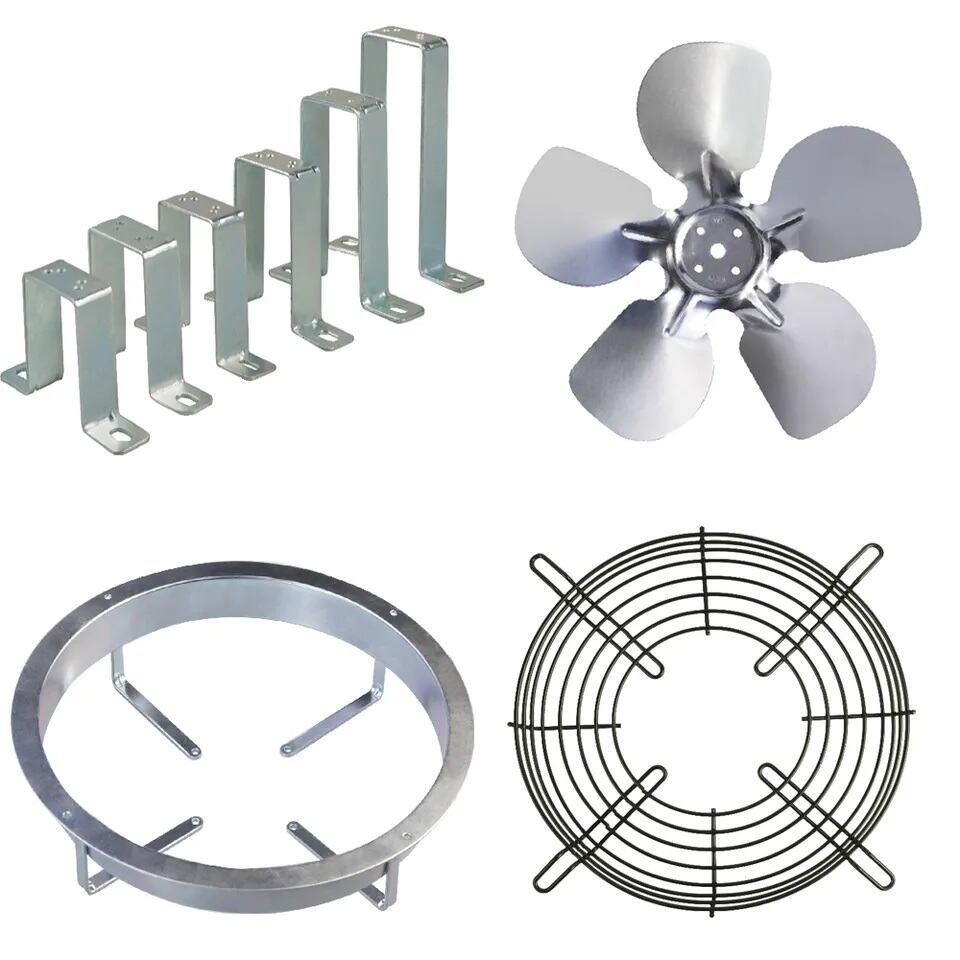

· Accessories: Fan Blade & Bracket & Ring & Grid
· Foot mounting: Track dimension 26mm or 18 mm
· Ambient temperature: -30°C-50°C.
· Installation direction: Recommends to horizontal manner
· Motor average life: 20000 hours.
· Certification: CE and CCC
· warranty: 2 Years

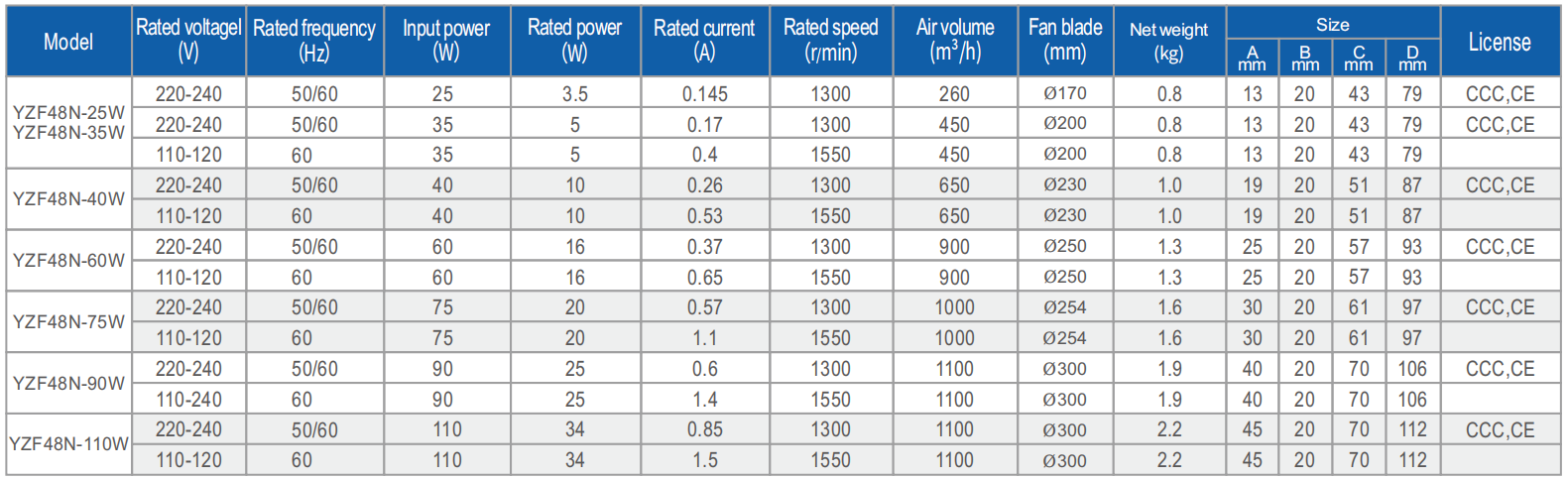

Specification
Application & Function
YZF series motors have a wide range of applications, including refrigerators, freezers, wine cabinets, fresh-keeping cabinets, radiators, evaporators, and other refrigeration equipment.
In refrigeration equipment such as beverage display cases, the core function of a single-phase asynchronous four-pole motor is primarily to drive the cooling fan.
The motor drives the fan to rotate at high speed, forcing airflow over the condenser fins to quickly dissipate the heat generated by the refrigeration system into the environment. This ensures that the compressor and refrigeration piping operate at appropriate temperatures, preventing efficiency drops or malfunctions due to overheating.
