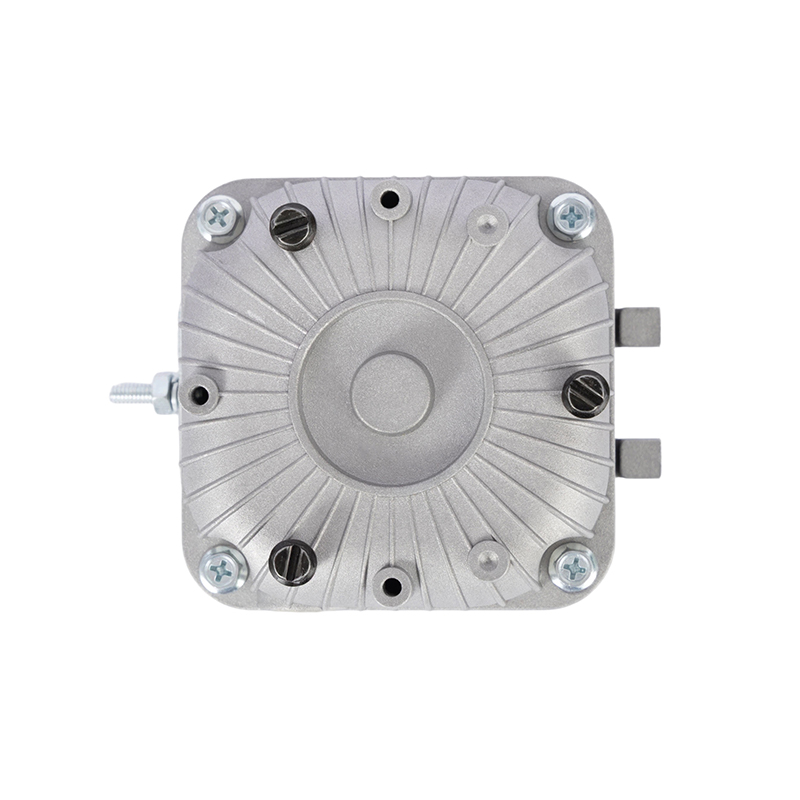

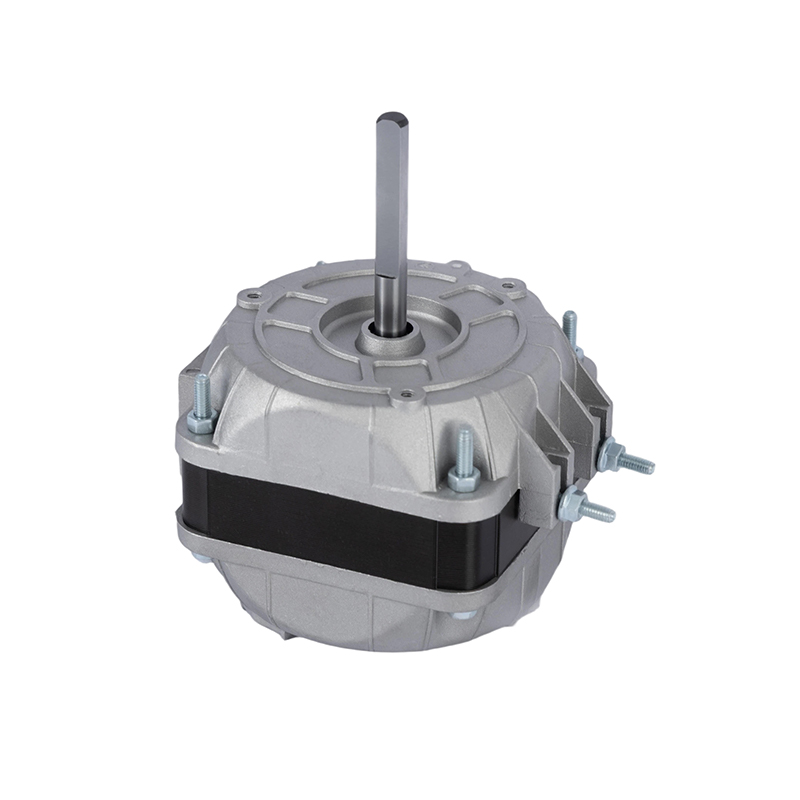

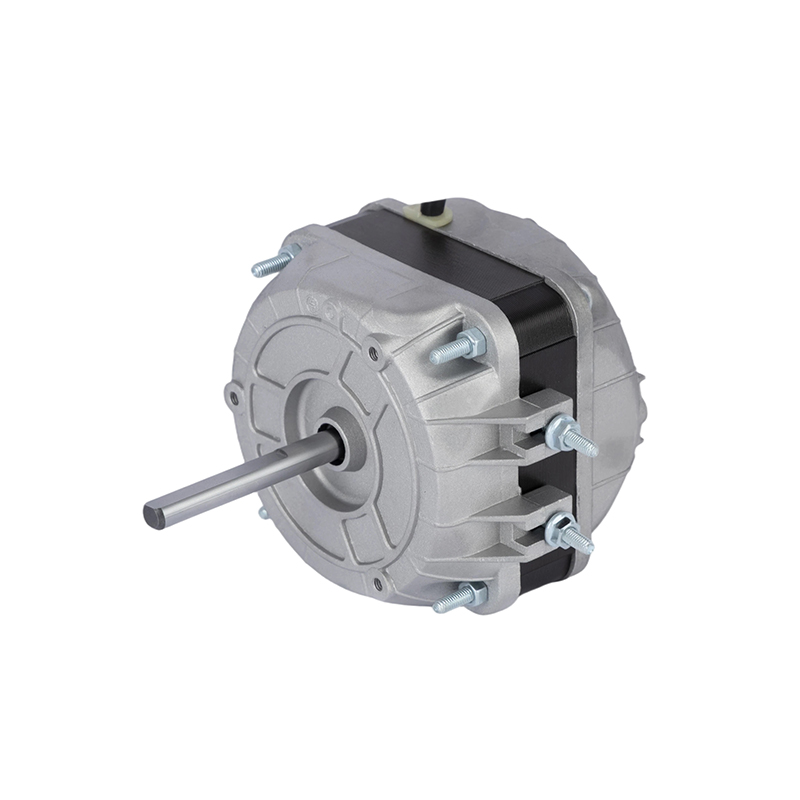

Home / Products / YZF Series Asynchronous Motor / Shaded Pole Motor / YZF 26 Shaded Pole Condenser Fan Motor
Product Overview
The YZF 26 Shaded Pole Condenser Fan Motor is a high-performance, reliable motor engineered for refrigeration and HVAC applications. This Shaded Pole Motor delivers consistent airflow with low noise, low vibration, and excellent starting performance.
Key Advantages
1. High-Performance Airflow
With air volumes ranging from 260 m³/h to 1100 m³/h and fan blade diameters from Ø170mm to Ø300mm, this Condenser Fan Motor ensures efficient heat dissipation for your refrigeration systems. The shaded pole design provides reliable starting torque without the need for start capacitors or switches.
2. Versatile Voltage Options
Available in both 220-240V (50/60Hz) and 110-120V (60Hz) configurations to meet global market requirements. Multiple power ratings from 25W to 110W allow you to select the exact motor for your application.
3. Wide Temperature Tolerance
Designed to perform reliably in extreme conditions, this Shaded Pole Motor operates efficiently in ambient temperatures ranging from -30°C to +50°C, ensuring consistent performance in freezers, cold rooms, and outdoor installations.
4. Robust Protection
With IP41 protection class and Class E insulation, this motor is built to withstand dust and water splashes commonly found in refrigeration environments.
Applications
This Shaded Pole Condenser Fan Motor is widely used in:
Refrigerators & Freezers – Reliable cooling for domestic and commercial units
Wine Cabinets & Fresh-Keeping Cabinets – Precise temperature maintenance
Radiators & Evaporators – Efficient heat exchange in refrigeration systems
Commercial Refrigeration Equipment – Walk-in coolers, display cases, and cold storage
Condenser Units – Optimized airflow for heat rejection
HVAC Systems – Ventilation and air-moving applications
Why Choose Us
Factory Direct – Quality & Cost Control
We are a manufacturer with our own production facility, not a trading company. This means we control every aspect of production – from raw materials to final assembly – ensuring consistent quality at competitive prices.
Certified Quality
Our motors are certified with CCC and CE approvals, meeting international safety and performance standards. All motors undergo 100% inspection before packaging and shipment.
Flexible Customization
From small modifications to full custom designs, we work closely with OEM and ODM customers to deliver motors that fit their exact specifications.
FAQ
Q1: What is the YZF 26 Shaded Pole Condenser Fan Motor?
The YZF 26 Shaded Pole Condenser Fan Motor is a single-phase asynchronous motor specifically designed for refrigeration and condenser applications. It uses a shaded pole design that provides simple, reliable operation without the need for starting capacitors or switches.
Q2: What are the available voltage and power options?
This Shaded Pole Refrigeration Motor is available in 220-240V 50/60Hz and 110-120V 60Hz versions.
Q3: What is the MOQ and lead time?
The minimum order quantity is 100 units. Delivery typically takes 15-30 days after the deposit is received. Custom orders may require additional lead time depending on specifications.
Q4: Can you customize the motor for my specific application?
Yes. As a manufacturer, we offer comprehensive OEM/ODM services including logo customization, packaging design, wire specification changes, and full custom motor designs based on your drawings or samples. Contact us with your requirements.
Q5: What is the warranty period?
We provide a 2-year warranty on all YZF series Shaded Pole Motors against manufacturing defects, ensuring peace of mind for your purchasing decision.
OEM/ODM Services
| Service | Details |
| Logo Customization | Brand your motors with custom labels and packaging |
| Packaging Design | Tailored packaging solutions for your brand |
| Wire Specification | Outgoing line specifications and length ("L" dimension)customized per your request |
| Small Customization | Minor modifications to standard models |
| Drawing‑Based Customization | Production based on your technical drawings |
| Sample‑Based Customization | Replication or modification based on your samples |
| Full Customization | Complete motor design tailored to your application |
| Parameter | Specification |
| Model | YZF 26 |
| Motor Type | Shaded Pole Motor |
| Rated Voltage | 220‑240V / 110‑120V (options available) |
| Rated Frequency | 50/60 Hz |
| Input Power | 25W – 110W |
| Rated Speed | 1300 – 1550 r/min |
| Insulation Class | Class E |
| Protection Class | IP41 |
| Operating Mode | S1 (Continuous) |
| Ambient Temperature | -30°C ~ +50°C |
| Warranty | 2 Years |
| MOQ | 100 units |
| Lead Time | 15‑30 days after deposit |

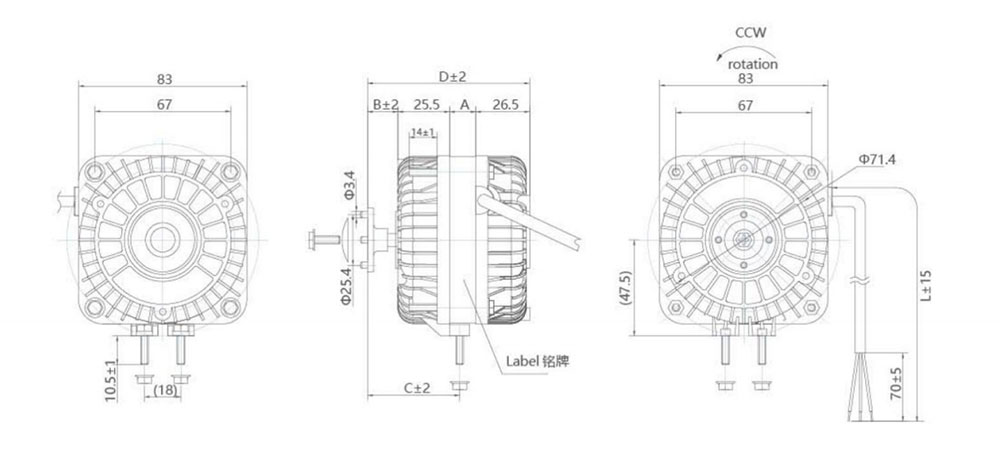

| Model | Rated voltage(V) | Rated frequency(Hz) | Input power(W) | Rated power(W) | Rated current(A) | Rated speed(r/min) | Air volume(m³/h) | Fan blade(mm) | Net weight(kg) | Size‑Amm | Size‑Bmm | Size‑Cmm | Size‑Dmm | License |
| YZF48N‑25W YZF48N‑35W |
220‑240 | 50/60 | 25 | 3.5 | 0.145 | 1300 | 260 | Ø170 | 0.8 | 13 | 15 | 45 | 80 | CCC,CE |
| 220‑240 | 50/60 | 35 | 5 | 0.17 | 1300 | 450 | Ø200 | 0.8 | 13 | 15 | 45 | 80 | CCC,CE | |
| 110‑120 | 60 | 35 | 5 | 0.4 | 1450 | 450 | Ø200 | 0.8 | 13 | 15 | 45 | 80 | ||
| YZF48N‑40W | 220‑240 | 50/60 | 40 | 10 | 0.26 | 1300 | 650 | Ø230 | 1 | 19 | 16 | 46 | 87 | CCC,CE |
| 110‑120 | 60 | 40 | 10 | 0.53 | 1450 | 650 | Ø250 | 1 | 19 | 16 | 46 | 87 | ||
| YZF48N‑60W | 220‑240 | 50/60 | 60 | 16 | 0.37 | 1300 | 900 | Ø250 | 1.3 | 25 | 16 | 46 | 93 | CCC,CE |
| 110‑120 | 60 | 60 | 16 | 0.65 | 1450 | 900 | Ø250 | 1.3 | 25 | 16 | 46 | 93 | ||
| YZF48N‑75W | 220‑240 | 50/60 | 75 | 20 | 0.57 | 1300 | 1000 | Ø254 | 1.6 | 30 | 15 | 45 | 97 | CCC,CE |
| 110‑120 | 60 | 75 | 20 | 1.1 | 1450 | 1000 | Ø254 | 1.6 | 30 | 15 | 45 | 97 | ||
| YZF48N‑90W | 220‑240 | 50/60 | 90 | 25 | 0.6 | 1300 | 1100 | Ø300 | 1.9 | 40 | 14 | 44 | 106 | CCC,CE |
| 110‑240 | 60 | 90 | 25 | 1.4 | 1450 | 1100 | Ø300 | 1.9 | 40 | 14 | 44 | 106 | ||
| YZF48N‑110W | 220‑240 | 50/60 | 110 | 34 | 0.85 | 1300 | 1100 | Ø300 | 2.2 | 45 | 14 | 44 | 112 | CCC,CE |
| 110‑120 | 60 | 110 | 34 | 1.5 | 1450 | 1100 | Ø300 | 2.2 | 45 | 14 | 44 | 112 |
