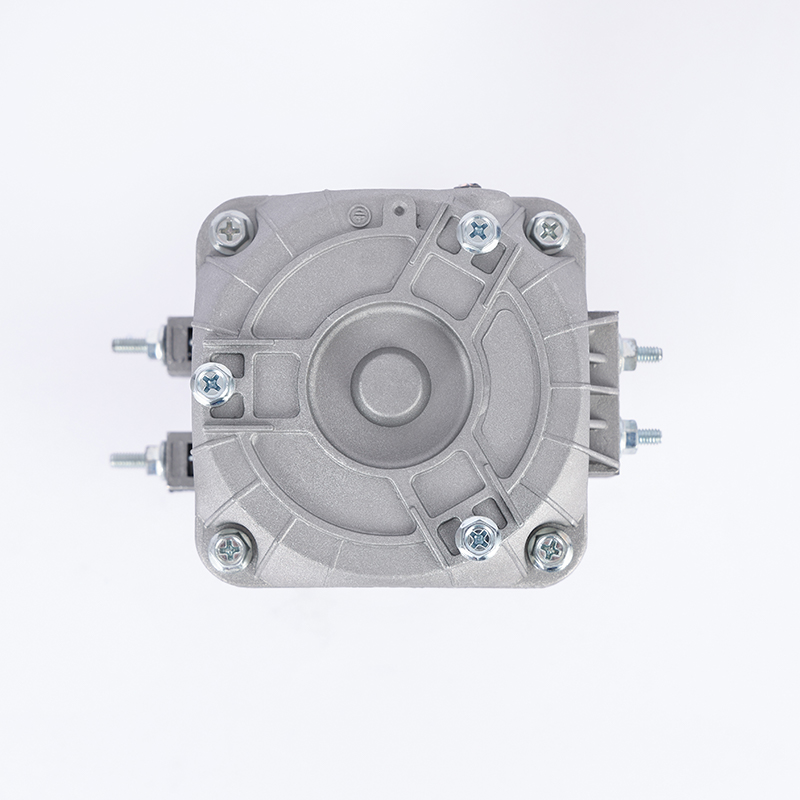

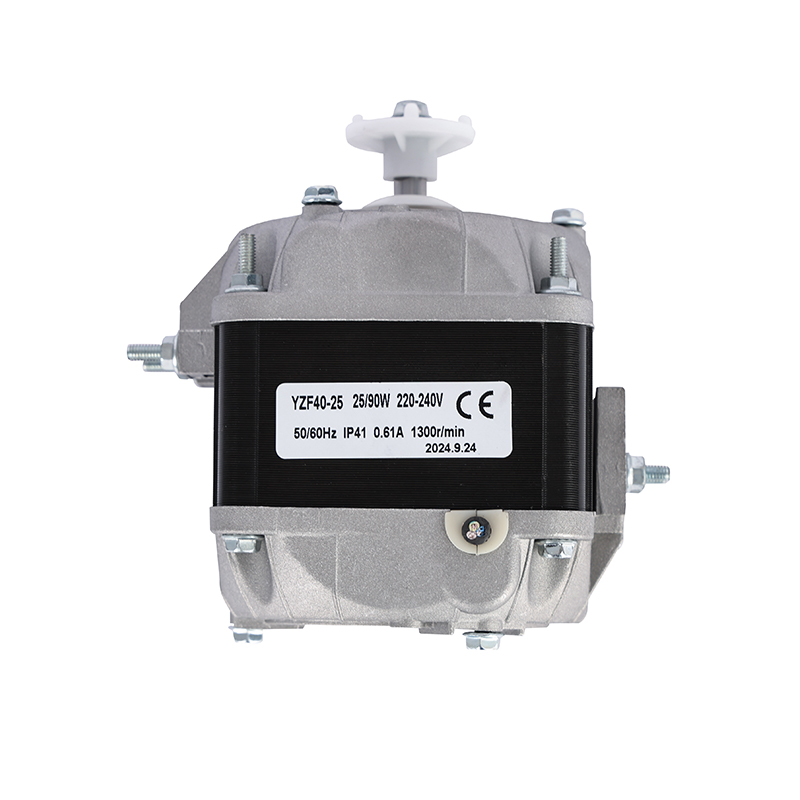

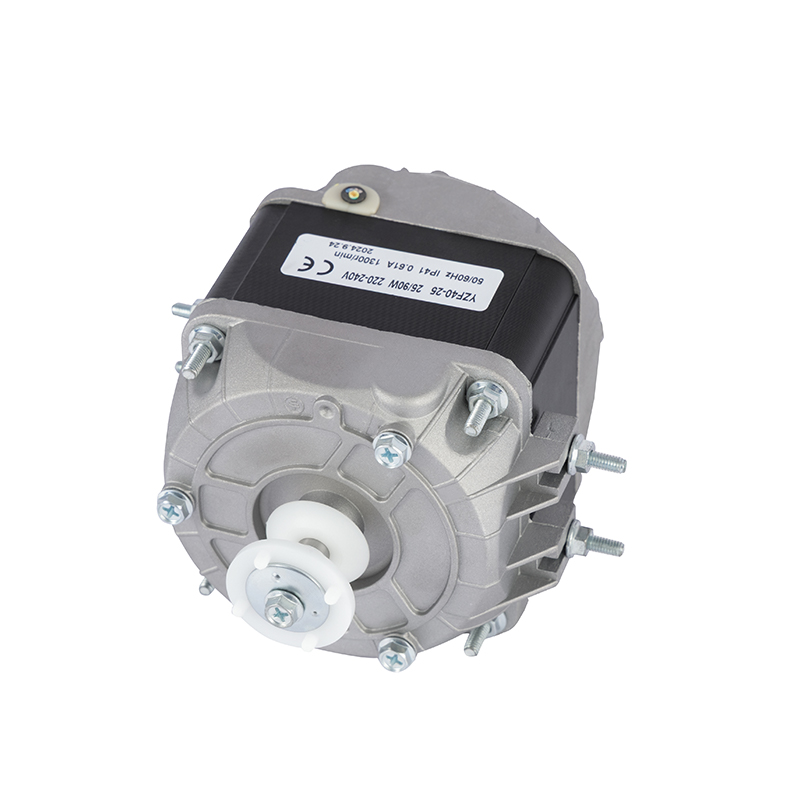

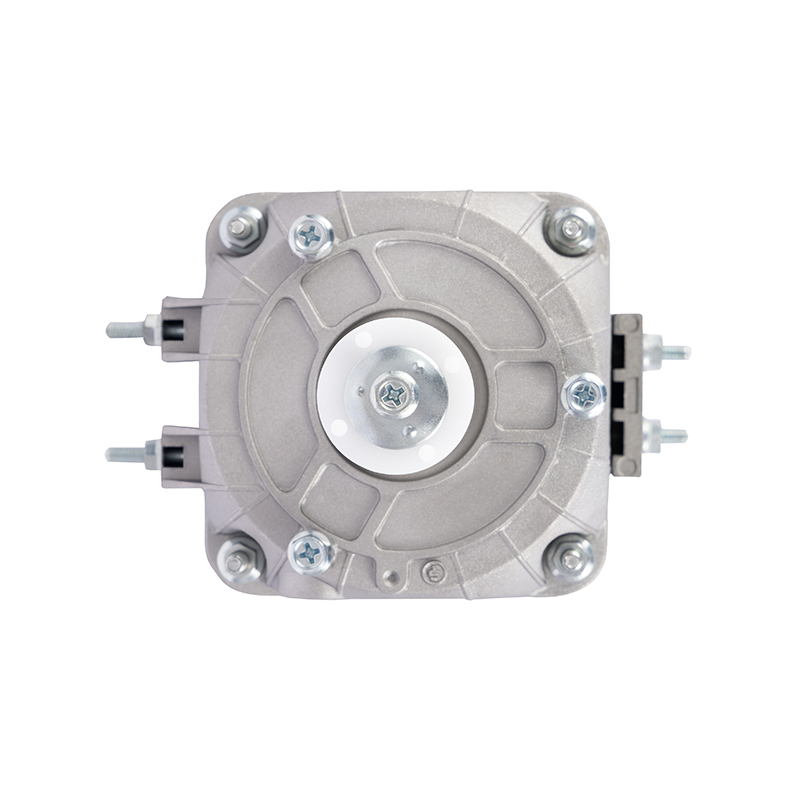

YZF Aluminium Wire Shaded Pole Motor

Key Advantages
1. Wide Airflow Range – 260 to 1100 m³/h
With fan blade diameters from Ø170mm to Ø300mm, this Condenser Fan Motor delivers air volumes from 260 m³/h up to 1100 m³/h. The range covers everything from compact refrigerators to large commercial freezers. Higher airflow means faster heat dissipation and more efficient cooling cycles.

2. Dual Voltage & Dual Speed Options – Global Compatibility
Every model is available in both 110-120V (60Hz) and 220-240V (50/60Hz) configurations. Models operating at 60Hz achieve higher speeds (1550 r/min) for increased airflow, while 50Hz versions run at 1300 r/min – giving you the flexibility to choose based on your regional power standards and cooling requirements.

3. Extreme Temperature Tolerance
This Aluminium Wire Motor operates reliably in ambient temperatures from -30°C to +50°C, ensuring consistent performance in freezers, cold rooms, and outdoor condenser units under harsh conditions.

4. Robust Protection & Safety – IP41 + Class E
IP41 protection class and Class E insulation provide excellent resistance to moisture and dust. All models are CCC and CE certified, meeting international safety standards.

Applications
This Aluminium Wire Shaded Pole Motor is widely used in:

Refrigerators & Freezers – Evaporator and condenser fan applications

Wine Cabinets & Fresh-Keeping Cabinets – Precision temperature control

Radiators & Evaporators – Heat exchange systems

Commercial Refrigeration – Display cases, cold storage, and walk-in coolers

Condenser Units – Outdoor and indoor condenser fan drives

HVAC Systems – Air-moving and ventilation applications

Why  Choose Us
Factory Direct – Quality & Cost Control
We are a manufacturer with our own production facility, not a trading company. Every stage – from raw material sourcing to final assembly – is under our strict quality control, ensuring consistent product quality at competitive factory-direct prices.

Certified Quality – CCC & CE Approved
All our Shaded Pole Motors are CCC and CE certified, meeting rigorous international safety and performance standards. Each motor undergoes 100% inspection before shipment.

Global Export Experience
Our Condenser Fan Motors have been exported to Europe, North America, Southeast Asia, and beyond, earning strong recognition for reliability and performance from OEM customers worldwide.

Flexible Customization & Reliable Delivery
From minor adjustments to full custom development, we work closely with OEM/ODM partners. With mature production systems, we ensure on-time delivery and stable supply.

FAQ
Q1: What is the YZF Aluminium Wire Shaded Pole Motor?

The YZF Aluminium Wire Shaded Pole Motor is a single-phase asynchronous motor specifically designed for refrigeration and condenser fan applications. It features high-quality aluminium wire windings and a shaded pole design that provides reliable starting without start capacitors or switches, offering a cost-effective solution with low noise and long service life.

Q2: What voltage and power options are available?

This Shaded Pole Motor is available in both 220-240V 50/60Hz and 110-120V 60Hz versions. Power ratings range from 25W to 110W input power across 7 models. Each model is offered in both voltage configurations.

Q3: What is the MOQ and lead time?

The minimum order quantity is 100 units. Standard orders ship within 15-30 days after deposit receipt. Custom orders may require additional lead time depending on specifications.

Q4: Can you customize the motor for my specific application?

Yes. As a manufacturer, we offer comprehensive OEM/ODM services including logo customization, packaging design, wire specification changes (outgoing line length "L"), and full custom motor designs based on your drawings or samples. Contact us with your requirements.

Q5: What is the warranty?

We provide a 2-year warranty on all YZF series Condenser Fan Motors against manufacturing defects.
