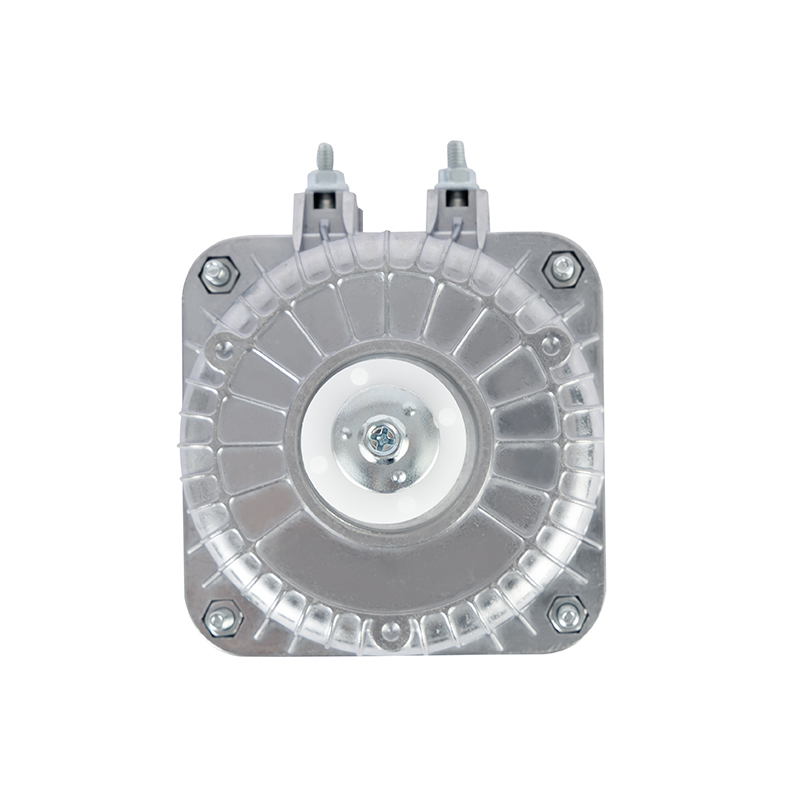

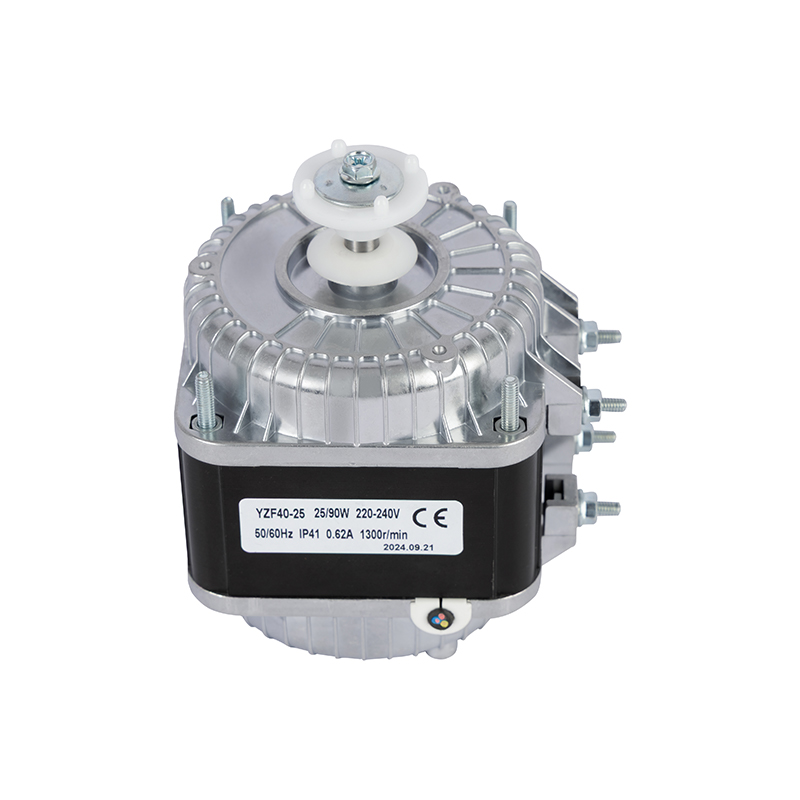

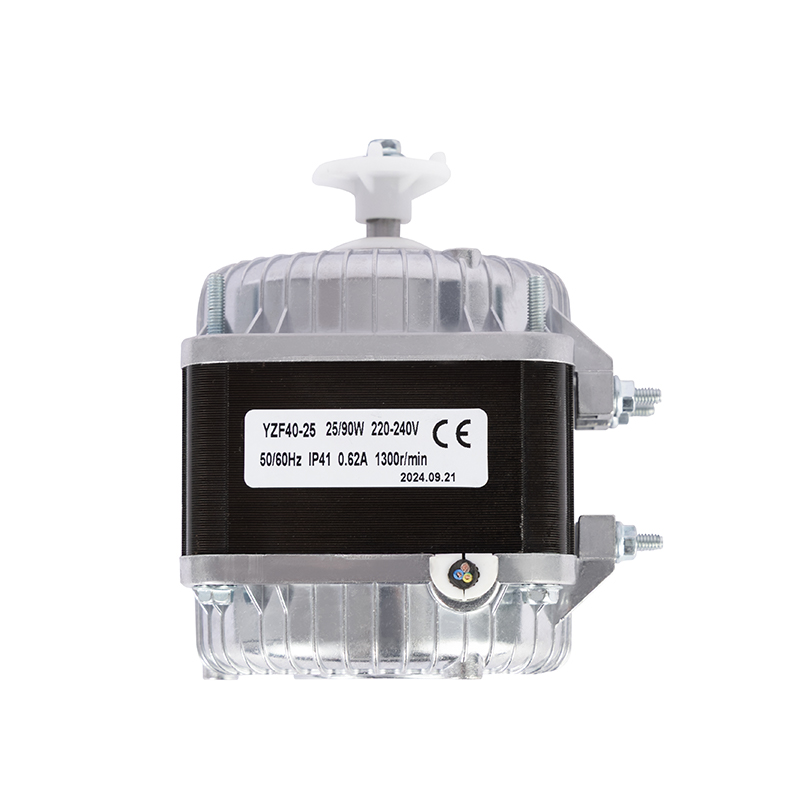

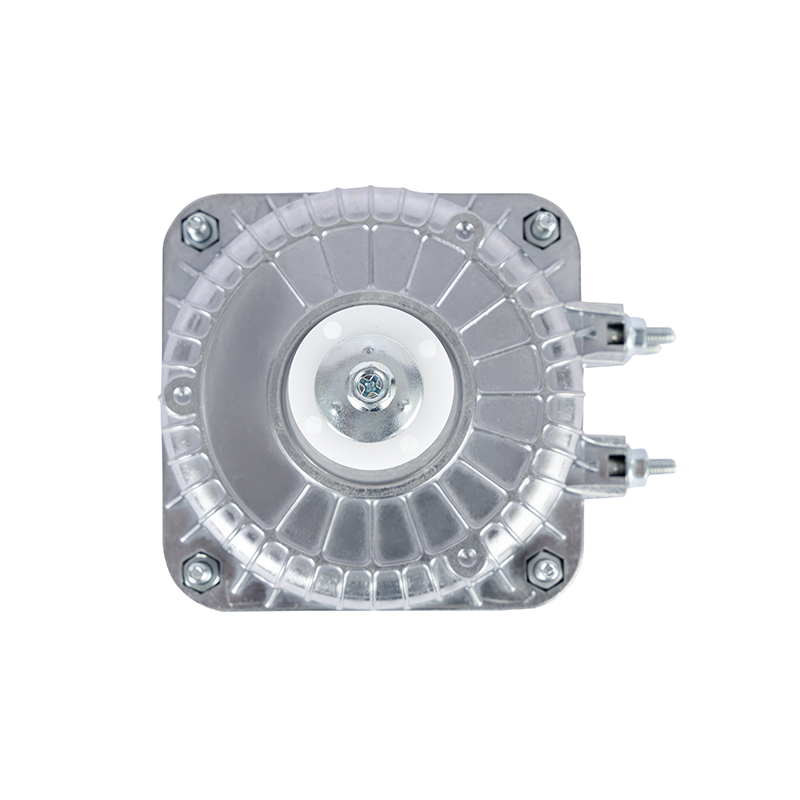

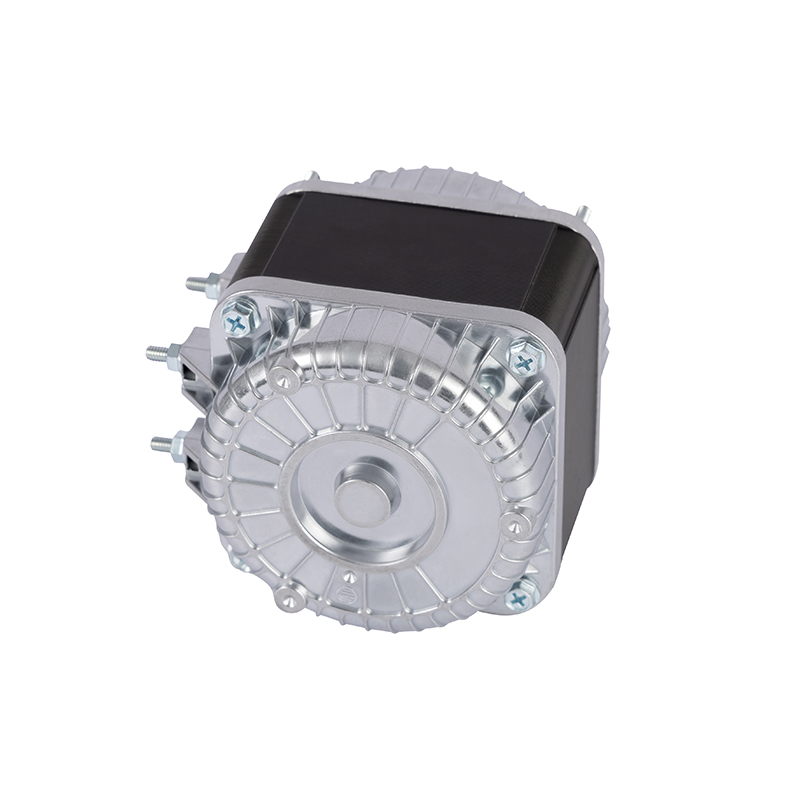

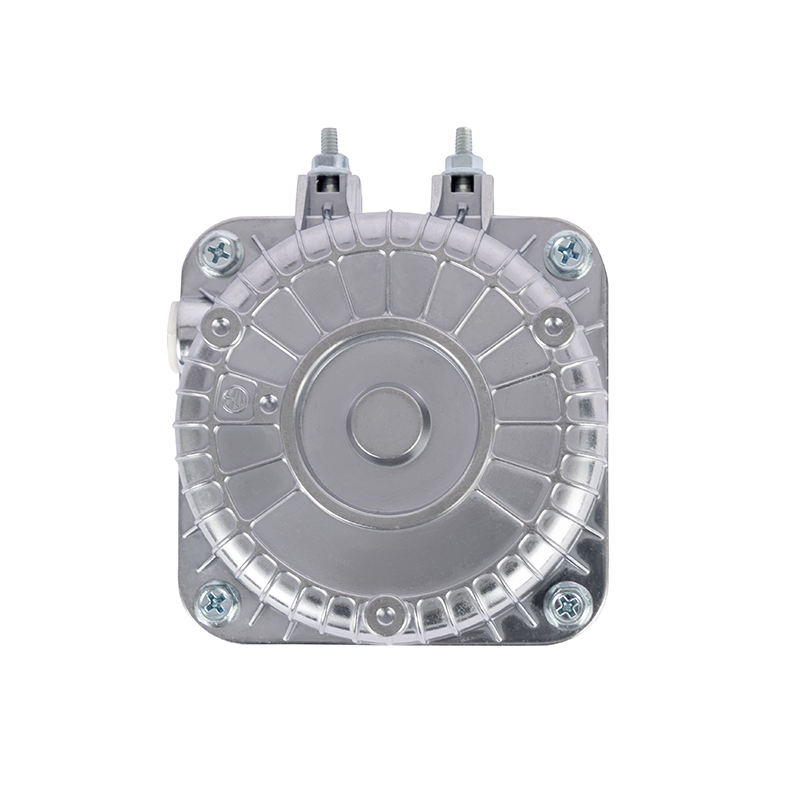

YZF Copper Wire Shaded Pole Motor

Key Advantages
1. Optimized Airflow for Refrigeration
Available with fan blade diameters from Ø170mm to Ø300mm, delivering air volumes from 260 m³/h to 1100 m³/h. This Condenser Fan Motor ensures efficient heat dissipation in refrigerators, freezers, wine cabinets, and evaporators.

2. Wide Power Range – 7 Models Available
Available in 7 power ratings from 25W to 90W input power, with both 110V and 220V configurations supporting global market distribution.

3. Extreme Temperature Tolerance
This Copper Wire Fan Motor operates reliably in ambient temperatures from -30°C to +50°C, ensuring consistent performance in freezers, cold rooms, and outdoor condenser units under harsh conditions.

4. Robust Protection & Safety
IP41 protection class and Class E insulation provide excellent resistance to moisture and dust. All models are CCC and CE certified, meeting international safety standards.

Applications
This Copper Wire Shaded Pole Motor is widely used in:

Refrigerators & Freezers – Evaporator and condenser fan applications

Wine Cabinets & Fresh-Keeping Cabinets – Precision temperature control

Radiators & Evaporators – Heat exchange systems

Commercial Refrigeration – Display cases, cold storage, and walk-in coolers

Condenser Units – Outdoor and indoor condenser fan drives

HVAC Systems – Air-moving and ventilation applications

Why Choose Us
Factory Direct – Quality & Cost Control
We are a manufacturer with our own production facility, not a trading company. Every stage – from raw material sourcing to final assembly – is under our strict quality control, ensuring consistent product quality at competitive factory-direct prices.

Certified Quality – CCC & CE Approved
All our Shaded Pole Motors are CCC and CE certified, meeting rigorous international safety and performance standards. Each motor undergoes 100% inspection before shipment.

Global Export Experience
Our Condenser Fan Motors have been exported to Europe, North America, Southeast Asia, and beyond, earning strong recognition for reliability and performance from OEM customers worldwide.

Flexible Customization & Reliable Delivery
From minor adjustments to full custom development, we work closely with OEM/ODM partners. With mature production systems, we ensure on-time delivery and stable supply.

FAQ
Q1: What voltage and power options are available?

This YZF Copper Wire Shaded Pole Motor is available in 220-240V 50/60Hz and 110-120V 60Hz versions. Power ratings range from 25W to 90W input power across multiple models.

Q2: What is the MOQ and lead time?

The minimum order quantity is 100 units. Standard orders ship within 15-30 days after deposit receipt. Custom orders may require additional lead time depending on specifications.

Q3: Can you customize the motor for my specific application?

Yes. As a manufacturer, we offer comprehensive OEM/ODM services including logo customization, packaging design, wire specification changes, and full custom motor designs based on your drawings or samples. Contact us with your requirements.

Q4: What is the warranty?

We provide a 2-year warranty on all YZF series Condenser Fan Motors against manufacturing defects.
