Product Overview

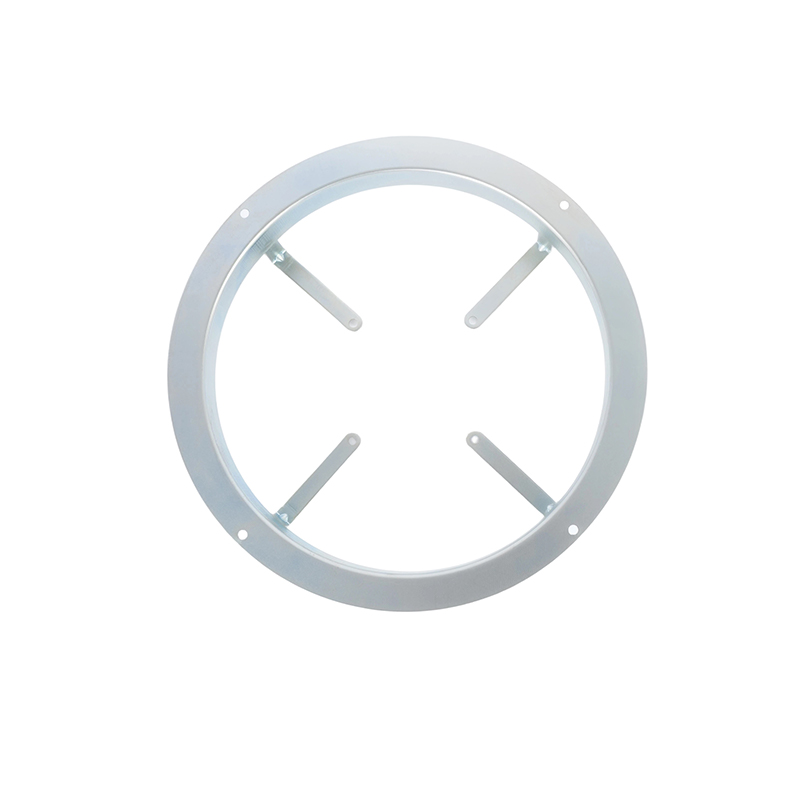

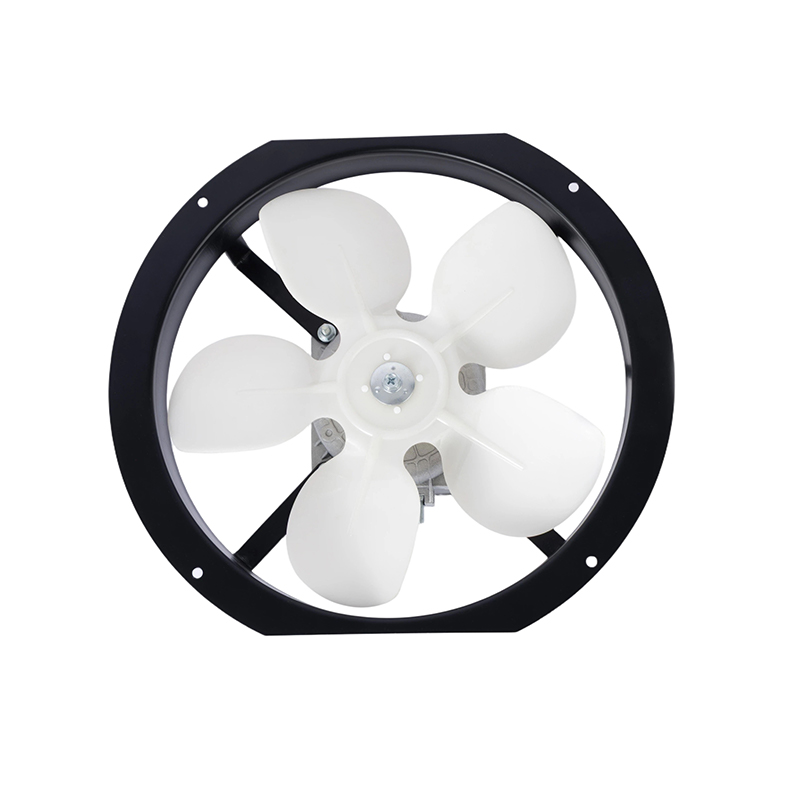

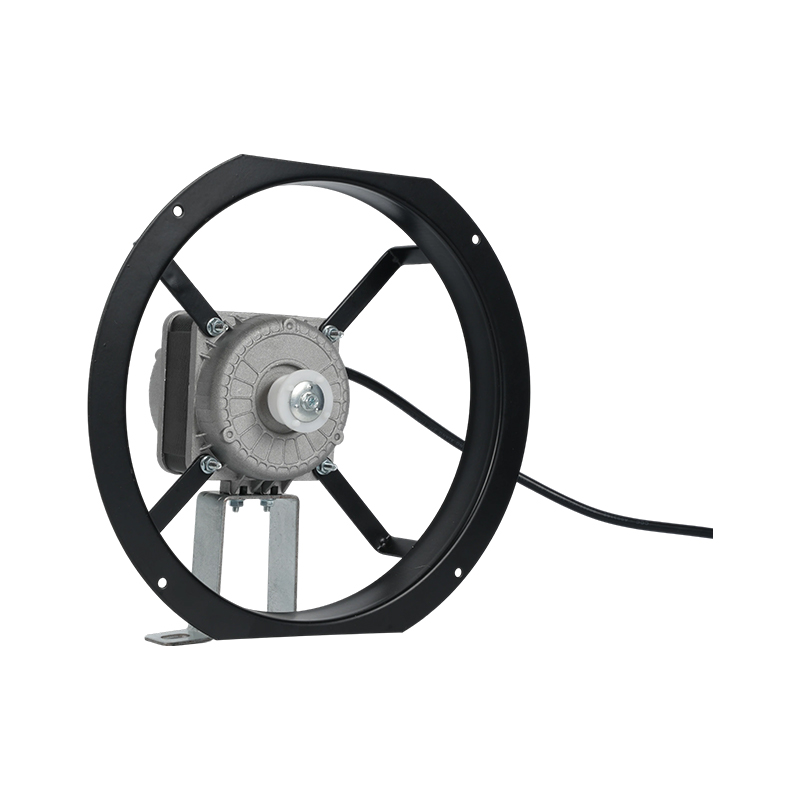

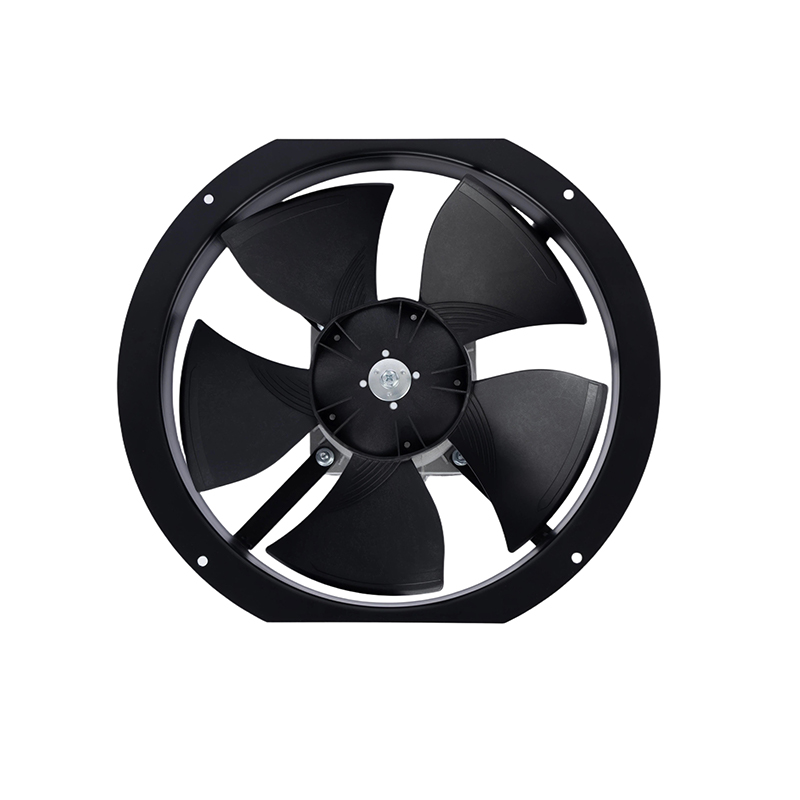

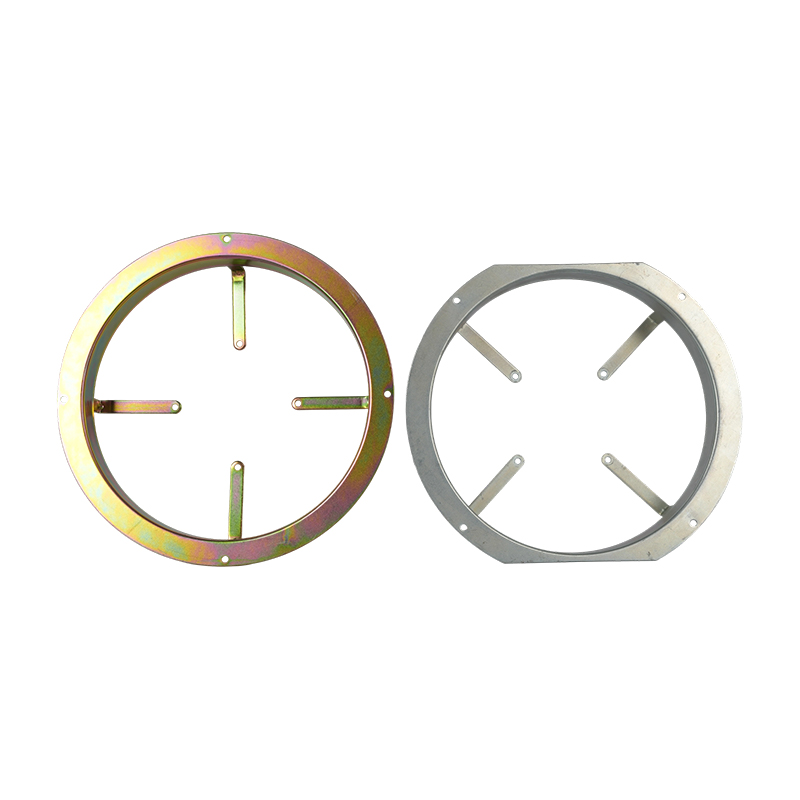

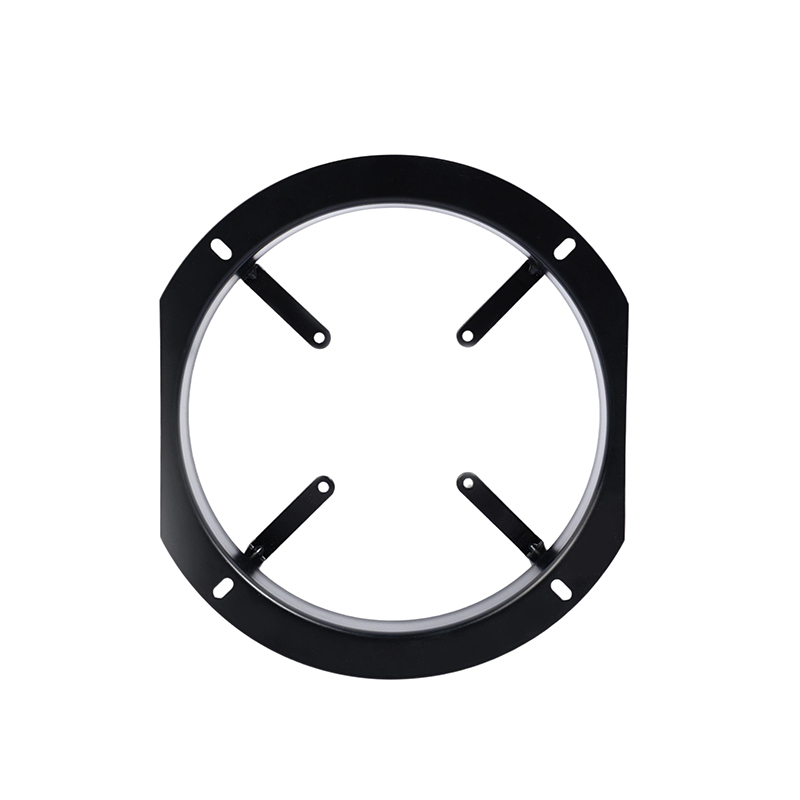

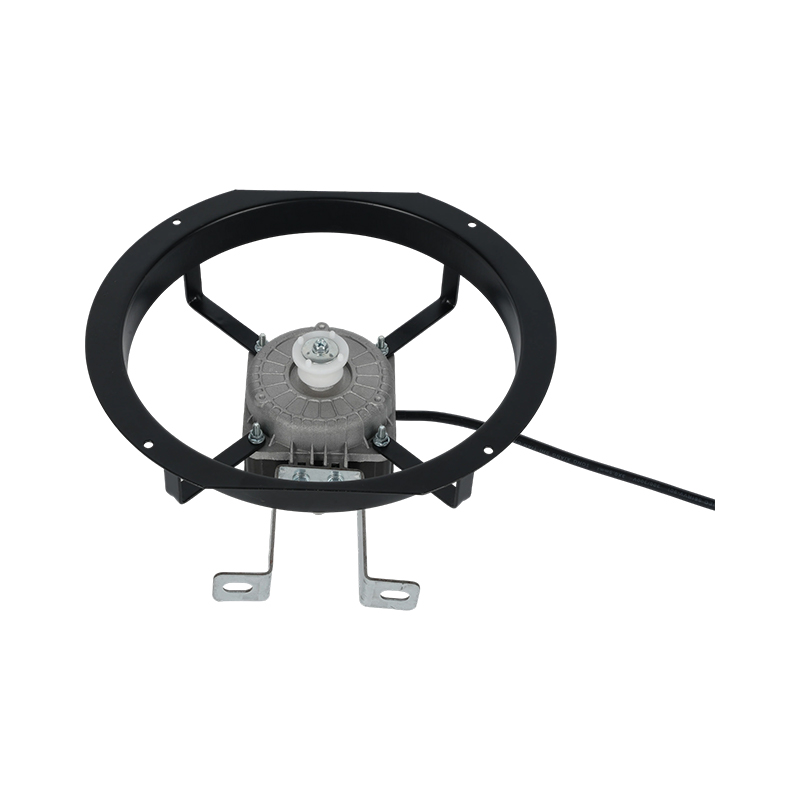

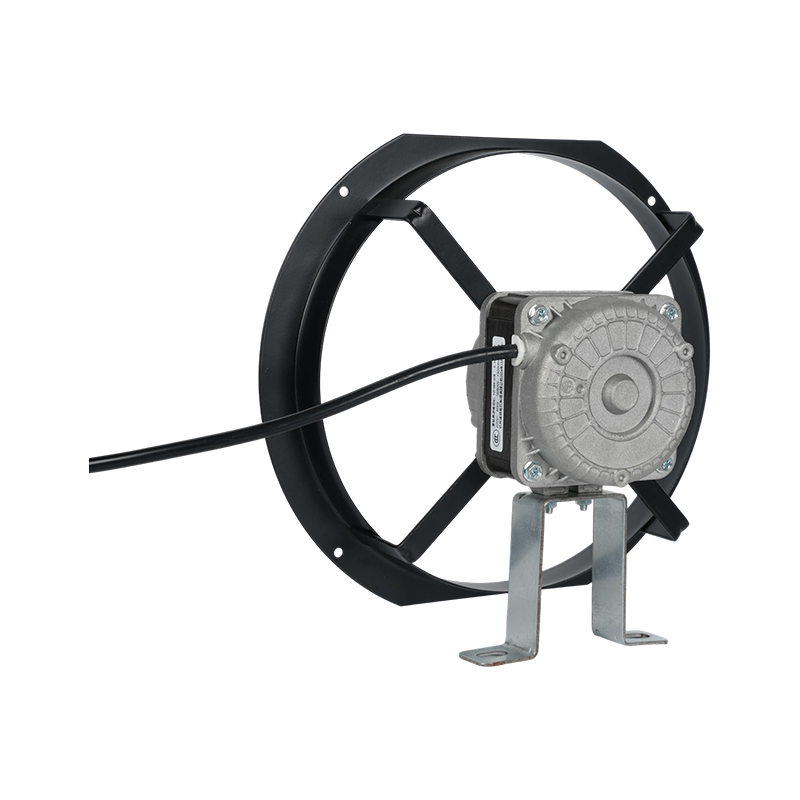

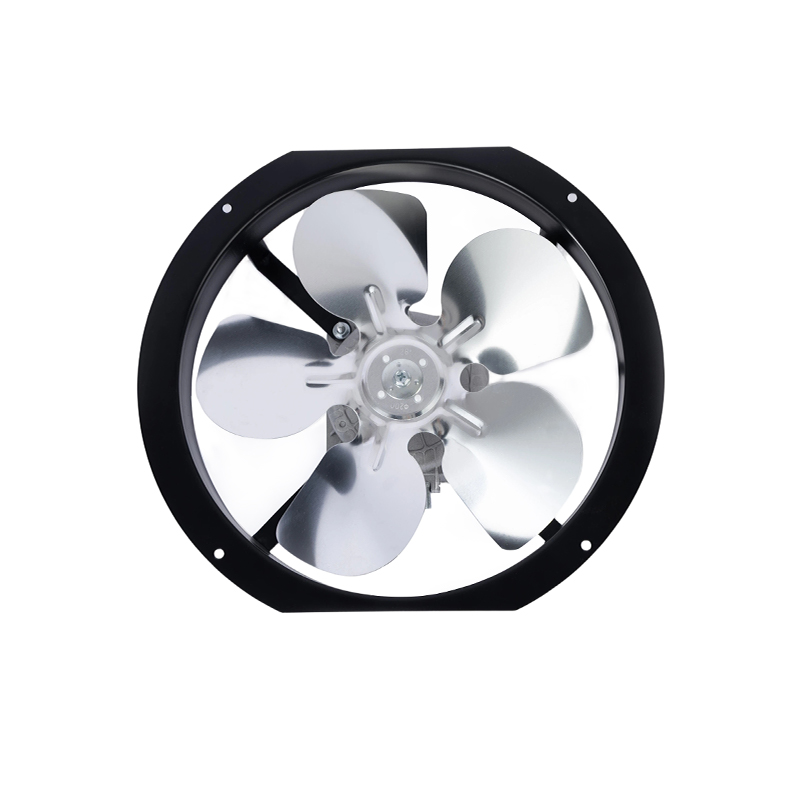

The YZF Motor Flange is a precision-engineered mounting component designed for YZF series refrigeration fan motors. This Motor Flange ensures secure motor installation, optimal alignment, and reliable performance in refrigeration equipment applications.
Applications
This Motor Flange is designed for YZF series motor installations in:
Refrigerators & Freezers – Condenser and evaporator fan motor mounting
Wine Cabinets – Secure motor installation for quiet operation
Fresh-Keeping Cabinets – Commercial refrigeration fan assemblies
Radiators & Evaporators – Heat exchange system motor mounts
Commercial Refrigeration – Display cases and cold storage
Condenser Units – Outdoor and indoor condenser fan assemblies
FAQ
Q1: What is the YZF Motor Flange?

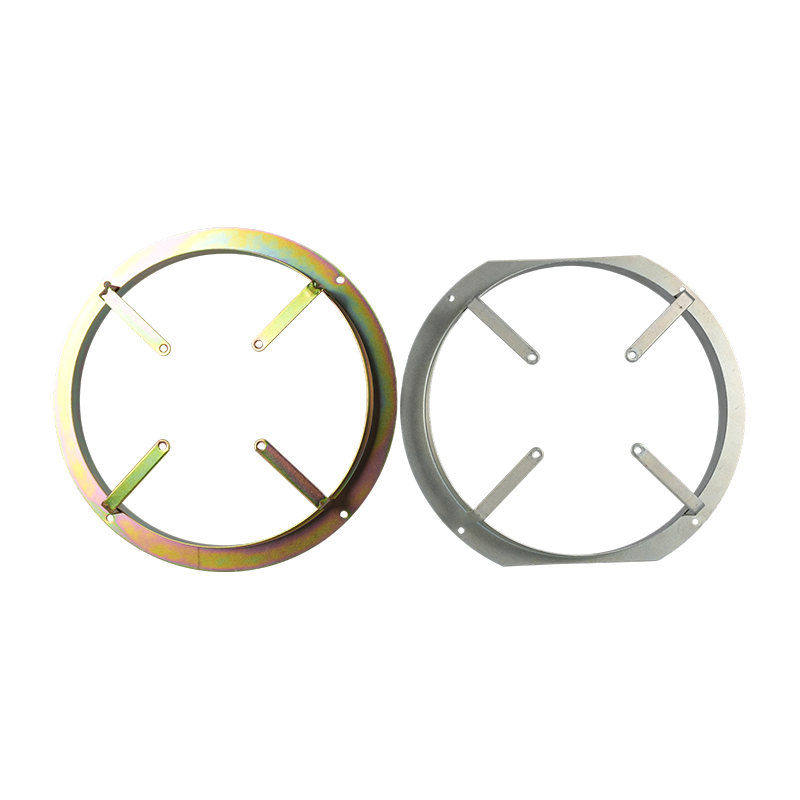

The YZF Motor Flange is a precision-engineered mounting component specifically designed for YZF series refrigeration fan motors. It provides secure motor-to-fan attachment with standardized M4 threaded mounting holes, available in 6 diameters (Ø154mm to Ø300mm) to match different fan sizes.
Q2: What are the available sizes?
This Motor Flange is available in 6 sizes: Ø154, Ø172, Ø200, Ø230, Ø254, and Ø300mm. Each size features Type A/B/C universal design with standard mounting hole specifications.
Q3: What material is used?
Our flanges are manufactured from high-grade steel with a durable anti-corrosion coating, providing excellent structural strength and resistance to moisture – ideal for refrigeration environments.
Q4: What is the MOQ and lead time?
The minimum order quantity is 100 units. Standard orders ship within 15-30 days after deposit receipt. Custom orders may require additional lead time depending on specifications.
Q5: Can you customize the flange for my specific application?
Yes. As a manufacturer, we offer OEM/ODM services including custom dimensions, materials, finishes, branding, and full custom designs based on your drawings or samples. Contact us with your requirements.
Q6: Is this flange compatible with other motor brands?
While specifically designed for YZF series motors, our flanges feature standard mounting dimensions that may be compatible with many other refrigeration fan motor brands. Please provide your motor specifications, and we will verify compatibility.
| Parameter | Specification |
| Product Name | YZF Motor Flange |
| Material | High‑grade steel with anti‑corrosion treatment |
| Type | A / B / C |
| Compatible Fan Diameters | Ø154, Ø172, Ø200, Ø230, Ø254, Ø300 (mm) |
| Mounting Hole | Ø4.3mm with M4 thread |
| Standard Finish | Anti‑corrosion coating |
| Application | Refrigeration fan motor mounting |

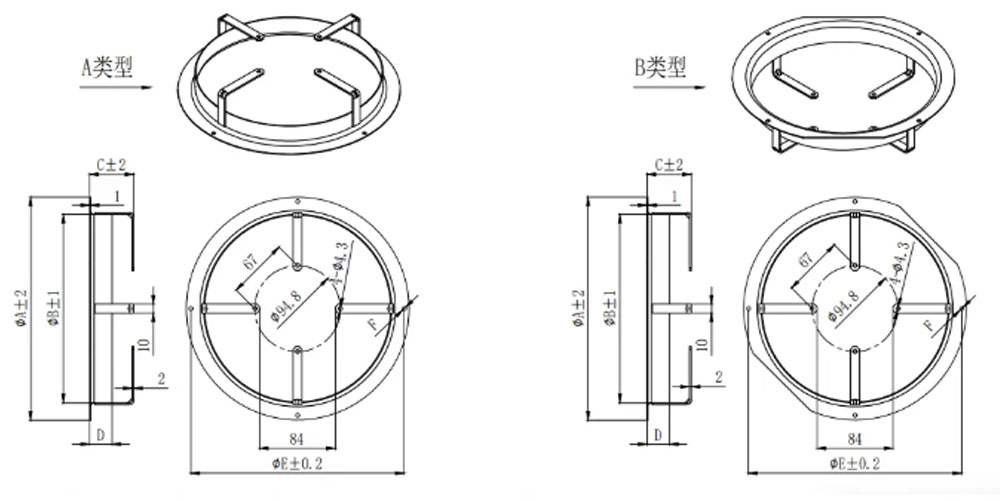

| Model | TYPE | ØA | ØB | C | D | ØE | F | |
| Ø154 | A/B/C | 200 | 162 | 49 | 25 | 190 | Ø4.3 Hole | M4 Thread |
| Ø172 | A/B/C | 223 | 180 | 49 | 25 | 208 | Ø4.3 Hole | M4 Thread |
| Ø200 | A/B/C | 246 | 208 | 49 | 25 | 236 | Ø4.3 Hole | M4 Thread |
| Ø230 | A/B/C | 278 | 238 | 49 | 25 | 266 | Ø4.3 Hole | M4 Thread |
| Ø254 | A/B/C | 300 | 268 | 49 | 25 | 290 | Ø4.3 Hole | M4 Thread |
| Ø300 | A/B/C | 378 | 308 | 49 | 30 | 365 | Ø4.3 Hole | M4 Thread |
Hangzhou Fengyin Motor Manufacturing Co., Ltd. was founded in 2007 and specializes in the R&D and production of single-phase shaded-pole induction motors, single-phase capacitor asynchronous motors, 110V/220V dual-voltage motors, YZF Motor Flange and DC brushless motors. Our products are trusted by manufacturers of commercial refrigerators, household appliances, kitchen and bathroom equipment, and medical devices worldwide.
With multiple automated production lines and comprehensive testing facilities, our annual production capacity reaches 4 million micro motors. We operate strictly in accordance with the ISO9001 quality system, and our products are certified with CCC and CE — ensuring seamless access to the European and Chinese markets.
Backed by 18 years of industry experience and a professional team of 150+ employees across R&D, production, and quality control, we deliver reliable performance at scale — and we deliver it on time. 30-day lead time, stable supply even in peak seasons.
As a professional Motor Flange Supplier Offering Type A , we don't just make motors. We build long-term partnerships by understanding your industry’s unique challenges — from -30°C cold chain to hospital-grade quiet operation, from high-heat ovens to moisture-rich environments. Tell us your application. We‘ll find the right motor for it.
