Product Overview

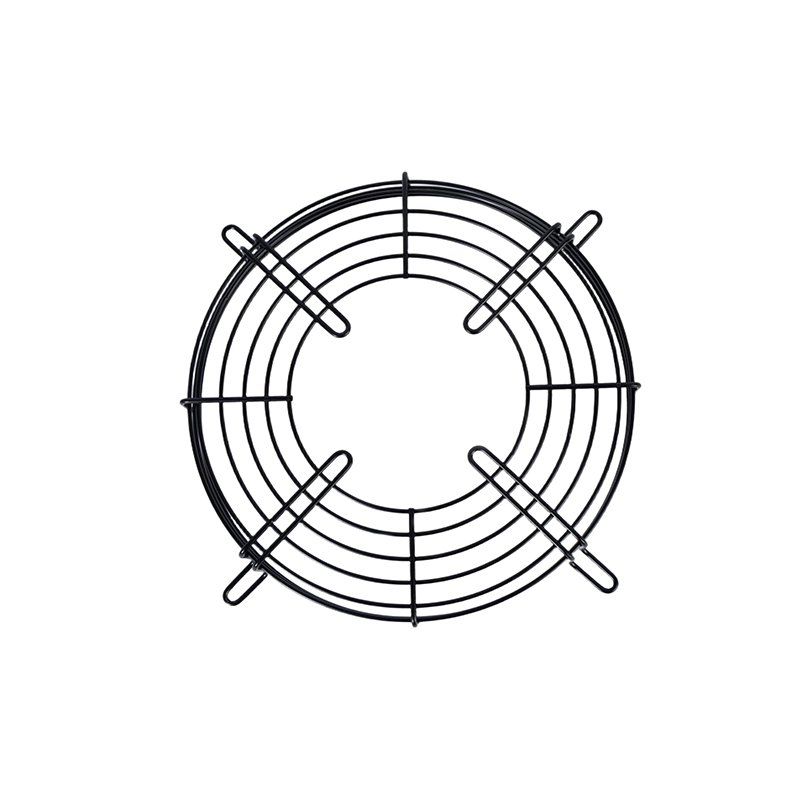

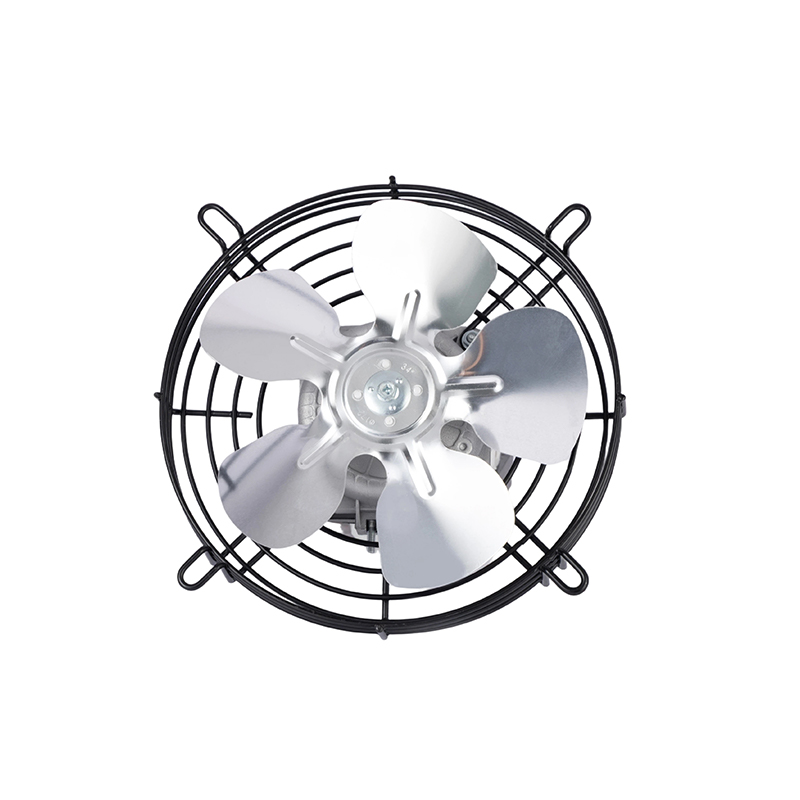

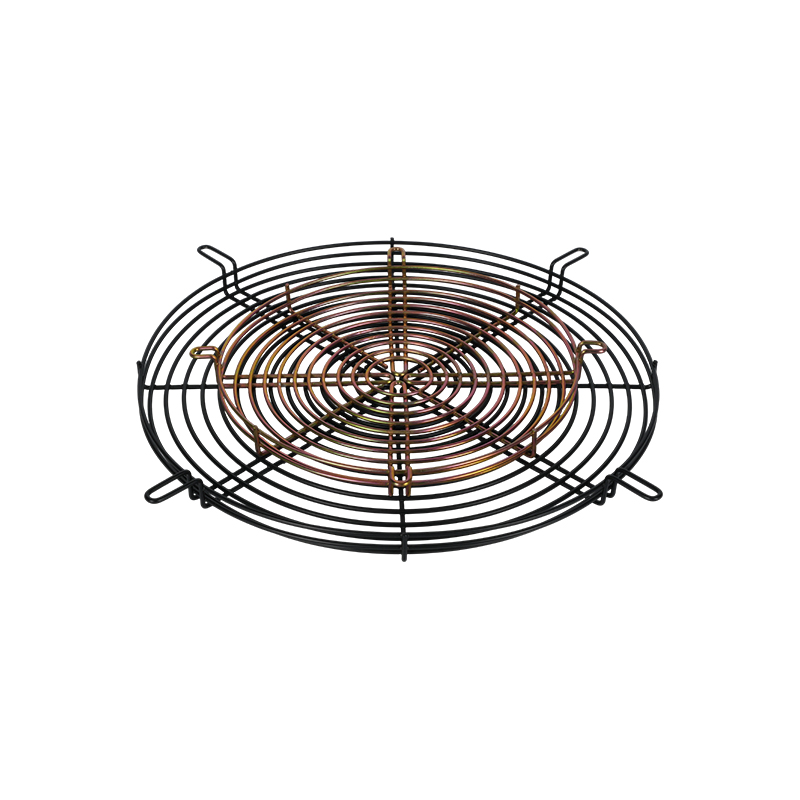

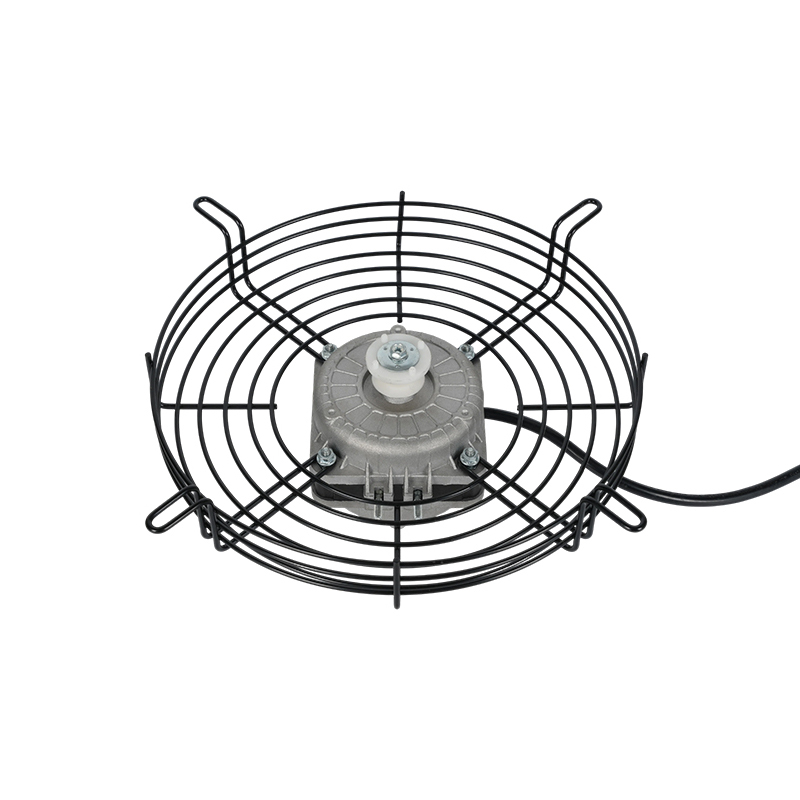

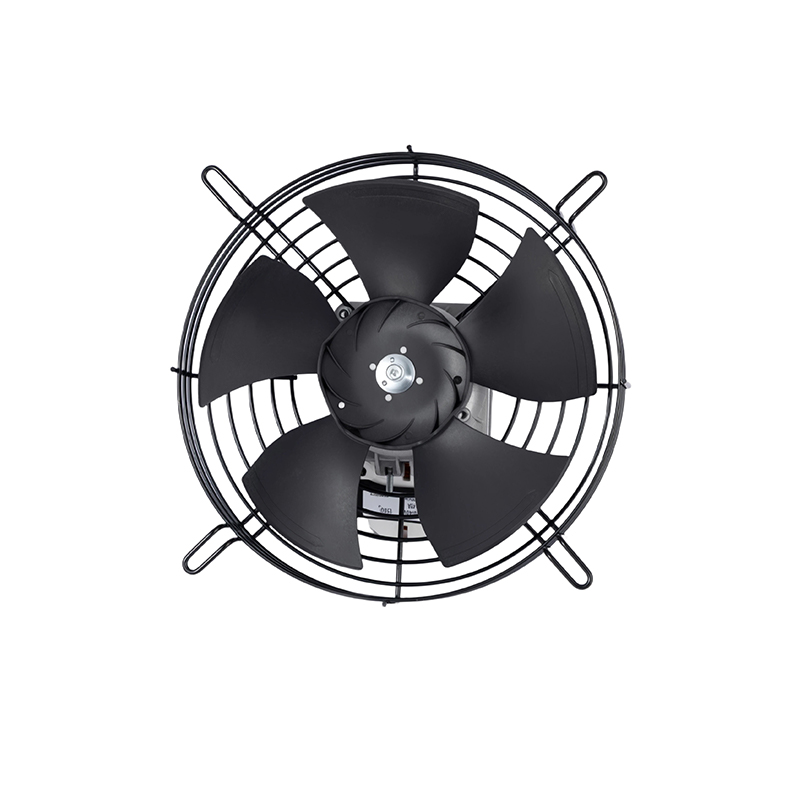

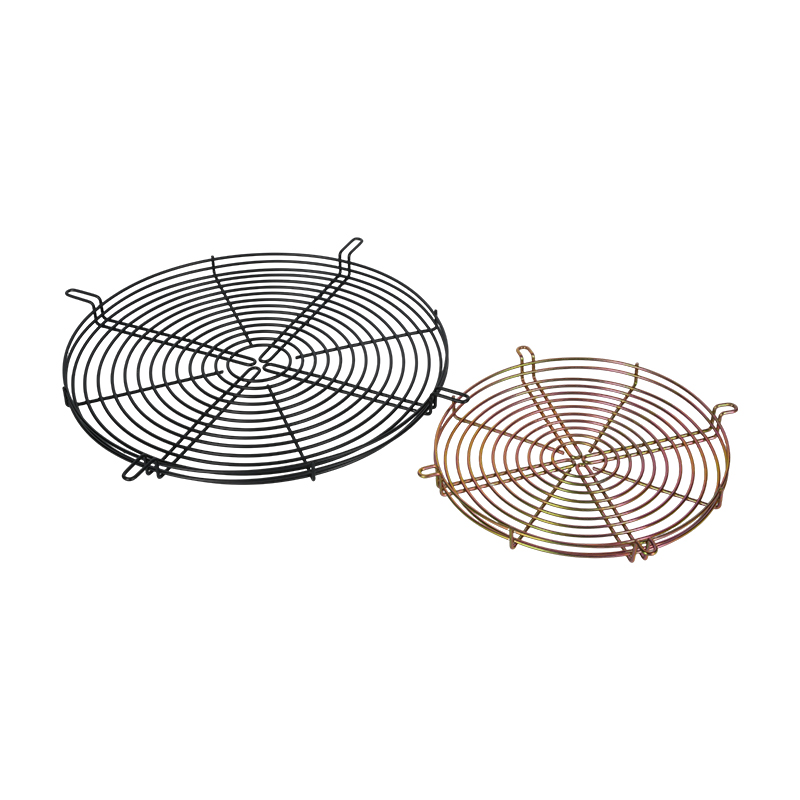

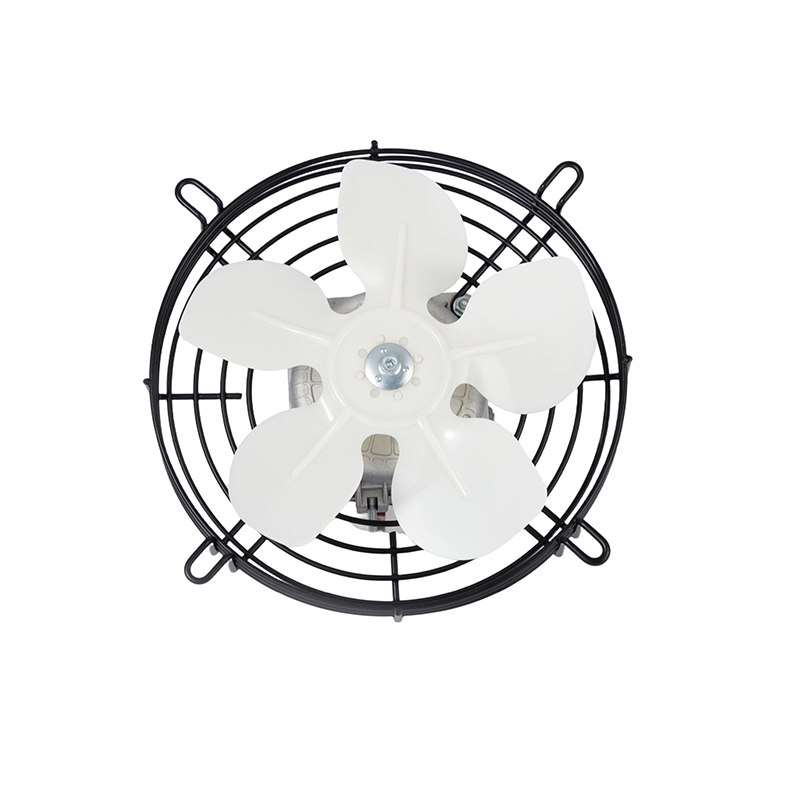

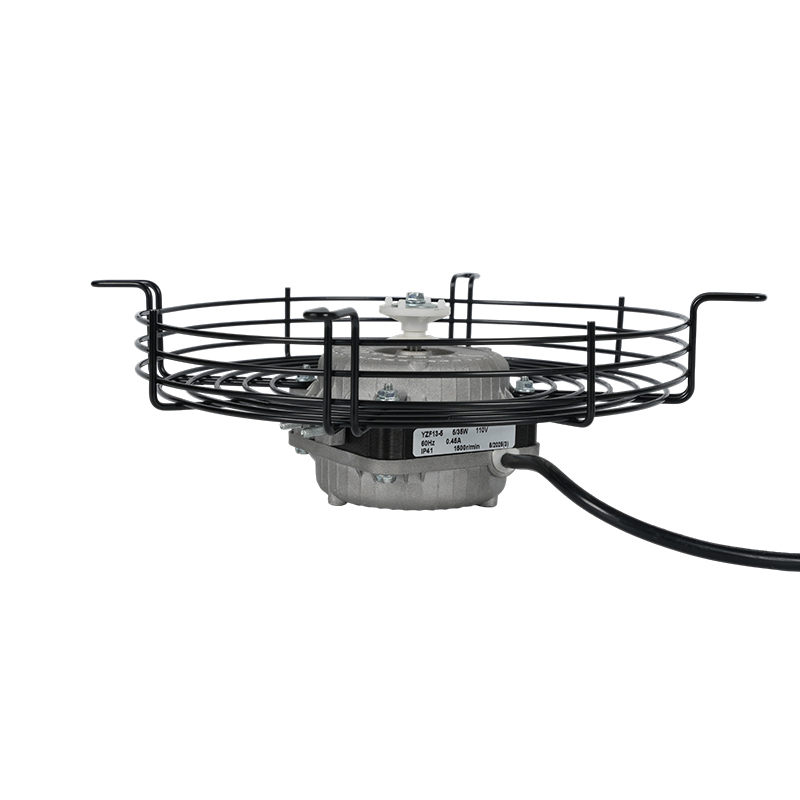

The YZF Asynchronous Motor Fan Guard is a durable protective guard designed for YZF series refrigeration fan motors. This Mesh Enclosure provides reliable protection against foreign objects, debris, and accidental contact while ensuring optimal airflow for motor cooling.
Applications
This Asynchronous Motor Fan Guard is designed for YZF series motor protection in:
Refrigerators & Freezers – Condenser and evaporator fan guards
Wine Cabinets – Protective covers for quiet fan operation
Fresh-Keeping Cabinets – Commercial refrigeration safety guards
Radiators & Evaporators – Heat exchange system protection
Commercial Refrigeration – Display cases and cold storage
Condenser Units – Outdoor and indoor condenser fan guards
FAQ
Q1: What is the YZF Asynchronous Motor Fan Guard?
The Motor Fan Guard is a durable protective guard made from high-strength steel wire, specifically designed for YZF series refrigeration fan motors. It provides reliable protection against foreign objects and accidental contact while maintaining optimal airflow for motor cooling. Available in 6 sizes matching fan diameters from Ø154mm to Ø300mm.
Q2: Does the Motor Fan Guard restrict motor cooling?
No. Unlike solid covers, the mesh design of this Motor Fan Guard ensures maximum air circulation with minimal pressure drop, allowing the motor to cool efficiently while providing reliable protection.
Q3: What are the available sizes?
This Asynchronous Motor Fan Guard is available in 6 sizes matching YZF series fan diameters: Ø154, Ø172, Ø200, Ø230, Ø254, and Ø300mm. See the dimensional table above for complete specifications.
Q4: Can you customize the dimensions?
Yes. Dimensions B and H can be customized to meet your specific motor mounting requirements. Contact us with your specifications for a custom solution.
Q5: What is the MOQ and lead time?
The minimum order quantity is 100 units. Standard orders ship within 15-30 days after deposit receipt. Custom orders may require additional lead time depending on specifications.
OEM/ODM Services
| Service Description | Details |
| Dimension Customization | B and H dimensions adjusted to your requirements |
| Small Customization | Minor modifications to standard designs |
| Drawing‑Based Customization | Production based on your technical drawings |
| Sample‑Based Customization | Replication or optimization based on your samples |
| Full Customization | Custom dimensions, materials, and finishes |
| Parameter | Specification |
| Product Name | YZF Asynchronous Motor Fan Guard |
| Material | High‑strength steel wire |
| Surface Treatment | Anti‑corrosion coating |
| Compatible Fan Diameters | Ø154, Ø172, Ø200, Ø230, Ø254, Ø300 (mm) |
| Application | Refrigeration fan motor protection |
| Customization | Dimensions B and H customizable |

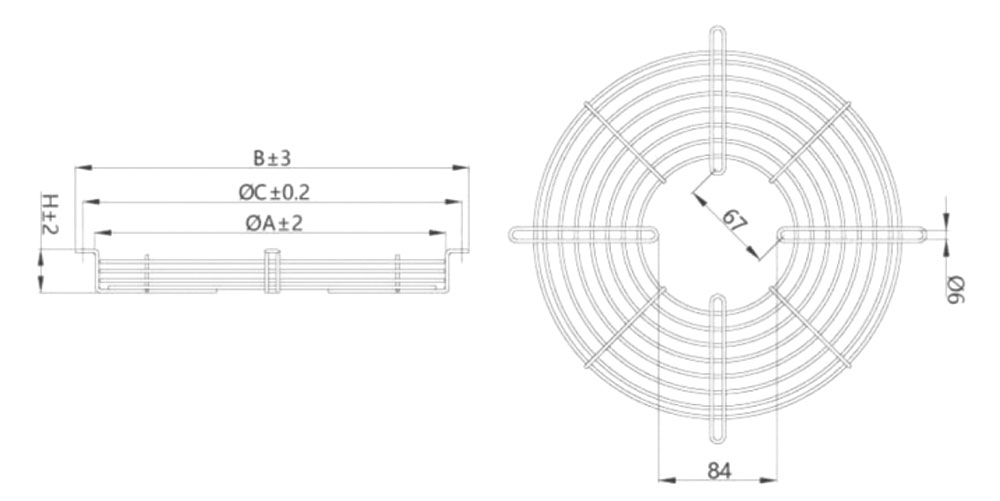

| SIZE\TYPE | Ø154 | Ø172 | Ø200 | Ø230 | Ø254 | Ø300 |
| A/mm | 170 | 188 | 214 | 246 | 270 | 324 |
| B/mm | 202 | 220 | 248 | 278 | 302 | 356 |
| C/mm | 190 | 208 | 236 | 266 | 290 | 344 |
| H/mm | 11 | 11 | 25 | 27 | 17 | 17 |
| The dimensions B and H described in the table may be customized and produced according to the client's requirements. | ||||||
Hangzhou Fengyin Motor Manufacturing Co., Ltd. was founded in 2007 and specializes in the R&D and production of single-phase shaded-pole induction motors, single-phase capacitor asynchronous motors, 110V/220V dual-voltage motors, YZF Asynchronous Motor Fan Guard and DC brushless motors. Our products are trusted by manufacturers of commercial refrigerators, household appliances, kitchen and bathroom equipment, and medical devices worldwide.
With multiple automated production lines and comprehensive testing facilities, our annual production capacity reaches 4 million micro motors. We operate strictly in accordance with the ISO9001 quality system, and our products are certified with CCC and CE — ensuring seamless access to the European and Chinese markets.
Backed by 18 years of industry experience and a professional team of 150+ employees across R&D, production, and quality control, we deliver reliable performance at scale — and we deliver it on time. 30-day lead time, stable supply even in peak seasons.
As a professional Custom Motor Fan Guard Solutions for Refrigerators , we don't just make motors. We build long-term partnerships by understanding your industry’s unique challenges — from -30°C cold chain to hospital-grade quiet operation, from high-heat ovens to moisture-rich environments. Tell us your application. We‘ll find the right motor for it.
