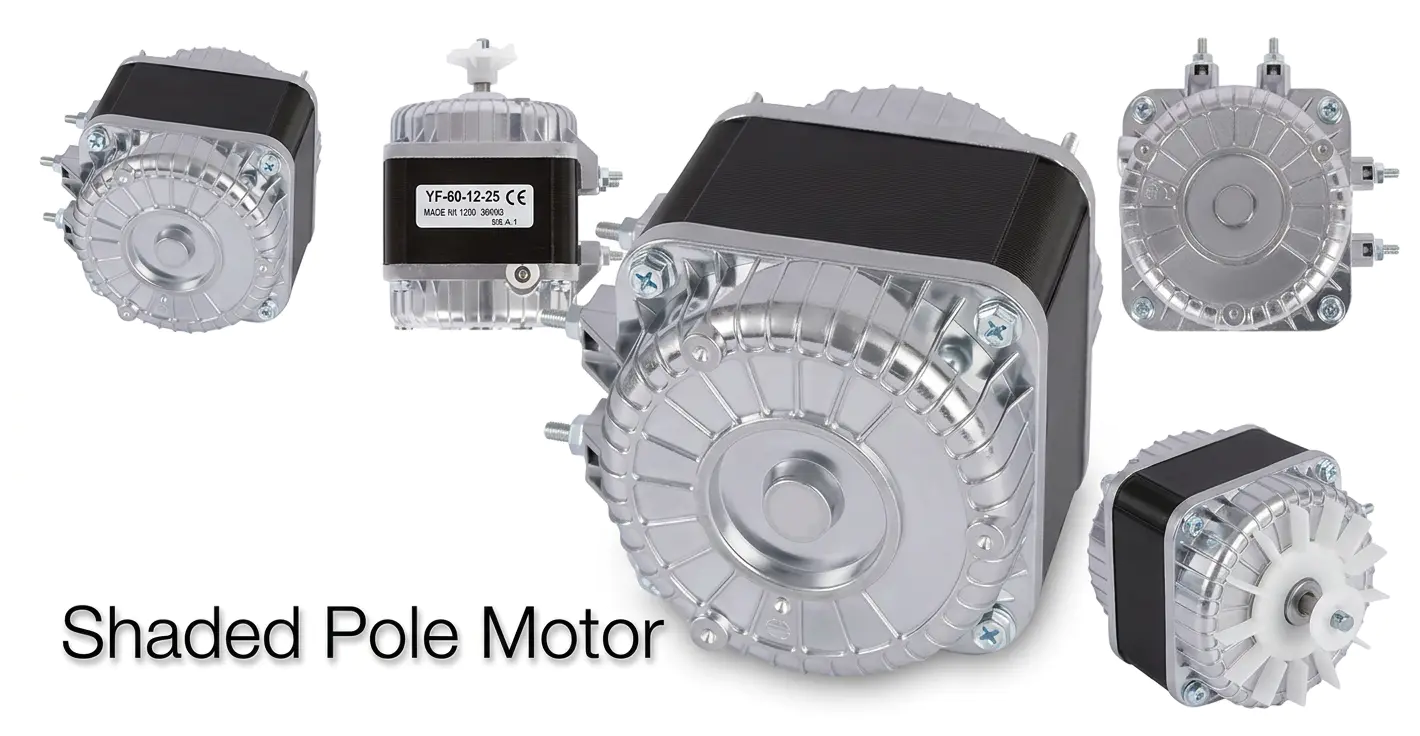

Shaded Pole Motor

A Shaded Pole Motor is a single-phase asynchronous motor built for small-power jobs. Its key feature is a copper shading ring around part of each stator pole. The ring delays the magnetic field in that part of the pole, so the motor can start turning without a capacitor, a starting switch or any extra starting circuit.

The construction is simple. That makes the motor a good fit where small size and easy operation matter more than strong starting torque. It is especially common in equipment that drives fan blades or other light rotating loads.

Typical characteristics include:

• Compact structure
• Simple electrical design
• Few components
• Stable running in light-duty use
• Suitable for continuous airflow tasks

For compact devices that need dependable rotation in a tight space, this makes the Shaded Pole Motor a practical choice.

A shaded pole AC motor works through a delay in magnetic flux.

Part of each stator pole is wrapped in a copper ring. When alternating current flows through the stator winding, the flux in the shaded area lags behind the flux in the unshaded area. This time gap produces a weak magnetic field that sweeps across the pole face.

The sweeping field pushes the rotor in one fixed direction, and it begins to turn. After that, the motor keeps running as an induction motor.

The design starts by itself without extra parts. It also sets the limits of what the motor can do.

In use, this leads to a few well-known traits:

• No capacitor needed
• No centrifugal switch needed
• Fairly low starting torque
• Best suited to light loads
• Compact and economical construction

So the motor makes sense in systems where a modest starting requirement is acceptable and a simple design is valued.

A Shaded Pole Motor is normally used in equipment that needs small size, steady running and a low to moderate mechanical load.

Common application examples

This motor type is widely used in:

• Axial fans
• Exhaust fans
• Ventilation equipment
• Refrigerator evaporator fan systems
• Display cooler air circulation units
• Air purifiers
• Small blowers
• Dehumidifiers
• Humidifiers
• Compact household appliances

Why it fits these applications

These devices mostly move air. They don't deliver heavy mechanical output. The motor doesn't need high starting torque here, but it does need to run steadily, stay compact and handle long running hours.

That is why the Shaded Pole Motor is so often linked with:

• Air movement systems
• Cooling circulation assemblies
• Small appliance drive units
• Equipment with limited space

Practical engineering needs shape these uses, not high-load performance.

Knowing how the motor performs shows where it works well.

Designers usually choose the Shaded Pole Motor for these reasons:

• Simple structure
• Compact frame size
• Fewer starting components
• Stable running in light-load systems
• Easy integration into fan and airflow equipment

Every motor design has limits, and these should be understood before selection:

• Lower starting torque than capacitor-based motors
• Lower efficiency in some applications
• Not well suited to heavy startup loads
• More sensitive to overload and poor ventilation

None of this makes the motor less useful. It simply performs best where mechanical demands are light and operating conditions are fairly straightforward.

Start with the electrical and mechanical needs of the equipment. A motor that fits the space can still be the wrong one if its starting torque, speed or operating characteristics don't match the load.

First, confirm the supply voltage and frequency. They must match the motor's rated values and the electrical system it will run on. Next, work out the output and speed the fan or driven part requires. For ventilation equipment, look at blade dimensions, airflow needs and system resistance. Then verify that the motor can start and run under the expected load.

Mechanical fit matters just as much. Check the shaft diameter and length, mounting holes, housing dimensions and connection arrangement. For a new appliance, set these dimensions early in the design. For a replacement, compare the nameplate and physical measurements of the original motor against the new one.

The operating environment should guide the choice too. For equipment that runs for long periods, look closely at temperature rise and energy use. Moisture or dust calls for suitable protection. If safety approvals are required, confirm that both the motor model and the final equipment meet the rules of the target market.

A Shaded Pole Motor is one type of 1 phase asynchronous motor. Setting it beside other common types makes its role clearer.

The comparison shows the Shaded Pole Motor is often the better pick when:

• The load is relatively light
• Space is limited
• A simple structure matters
• Startup demand is not severe

When you need higher starting torque or a wider range of loads, another single-phase motor type may suit better.

The design is simple, but operating conditions still affect reliability and service life directly.

Routine care may include:

• Keeping the motor and the airflow path around it clean
• Preventing dust buildup
• Watching for unusual vibration or noise
• Monitoring temperature during long runs
• Making sure the fan blade or driven part turns freely
• Confirming that supply voltage and frequency are correct

If the motor gets noisy, overheats or turns unevenly, the cause may be:

• Bearing wear
• Blocked ventilation
• Heavy dirt buildup
• Mechanical obstruction
• Supply mismatch
• Overload

For light-duty equipment that runs continuously, regular inspection supports stable operation and helps avoid faults that could have been prevented.

The answers below are short and direct, so readers and AI search tools can pick them up easily.

It creates a phase difference between the shaded and unshaded parts of the stator pole. The delayed magnetic field produces a weak rotating effect that starts the rotor in one direction.

Fans, ventilators, refrigerator circulation systems, air movement devices and compact appliances with fairly light startup loads.

Fans carry light rotating loads and usually have little room to spare. The motor's compact structure and working principle suit both conditions.

A PSC motor uses a capacitor. It usually runs more smoothly and starts more strongly. A shaded pole motor is simpler but generally gives lower starting torque.

Yes, in light-duty applications, as long as thermal conditions, ventilation and load stay within the design range.

Voltage, frequency, speed, output power, mounting dimensions, temperature rise, insulation class, bearing type and the actual operating environment.

Cleaning, checking for abnormal heat or noise, making sure the driven part moves freely, and preventing overload or blocked airflow around the motor.

The Shaded Pole Motor still has a place in compact airflow and light-duty equipment. Its design offers a simple structure, steady running and good use of limited space. In refrigeration circulation systems, ventilation units, fan assemblies and small appliances, a well-matched shaded pole AC motor can deliver dependable performance once the operating conditions are clearly defined. Review the power supply, speed, thermal behavior, installation dimensions and load characteristics together, and the motor you pick will fit both the equipment and its working environment.
